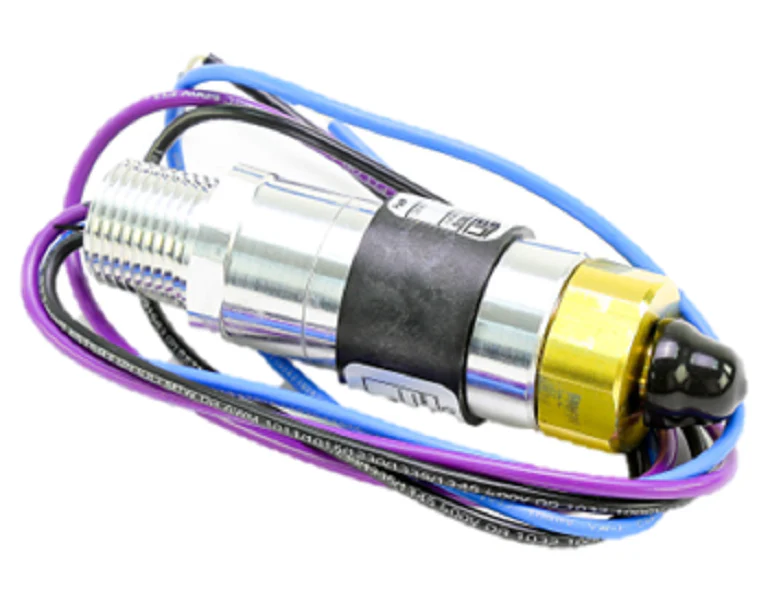

United Electric 10-C10 Pressure Switch
The United Electric 10-C10 Pressure Switch is a NEMA 4 rated, compact cylindrical control engineered for rigorous industrial and HVACR environments. As part of the UE Spectra 10 Series, this field-adjustable pressure switch features a setpoint range of 4 to 50 PSI and a 1 SPDT switch output (5A @ 125/250 VAC), ensuring precise electrical circuit activation or interruption. Its rugged construction includes a corrosion-resistant aluminum enclosure, a Buna-N diaphragm with an O-ring for reliable sealing, and a 1/8" NPTM brass pressure connection.
Designed for space-critical installations, the UE 10-C10 measures only 1.25 inches in diameter. Pros choose this model for its tamper-resistant external adjustment and high proof pressure of 3000 PSI, making it suitable for mobile hydraulic units, compressors, and lube oil systems where pressure surges are common. The unit comes standard with 20-inch potted leads and a 1/2" NPTM conduit connection to maintain environmental integrity in harsh conditions.
Key Benefits for the Contractor- Versatile 4-50 PSI Range: Wide adjustable setpoint range allows for precise calibration across various low-pressure monitoring applications.
- Environmental Protection: The NEMA 4 aluminum enclosure ensures reliable performance in outdoor or wash-down industrial settings.
- High Proof Pressure: With a 3000 PSI proof pressure and 1000 PSI overrange protection, this switch withstands significant system spikes without failure.
- Compact Form Factor: Cylindrical design fits into tight manifolds and small machine footprints where traditional box-style switches cannot.
- Proven Durability: Buna-N diaphragm and brass wetted materials provide long-term compatibility with air, gas, and hydraulic fluids.
How do I adjust the setpoint on a UE 10-C10?
This model utilizes a tamper-resistant external screw-type adjustment located on the housing, allowing for field calibration within the 4 to 50 PSI range without disrupting process connections.
Can the 10-C10 be used in hydraulic systems with high surges?
Yes, the United Electric 10 Series is specifically engineered for high settings and surges, featuring a robust 3000 PSI proof pressure rating to handle demanding hydraulic transients.
What are the electrical wiring colors for the SPDT leads?
The 20-inch 18-AWG leads typically follow a standard United Electric configuration: Violet (Common), Blue (Normally Open), and Black (Normally Closed).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
