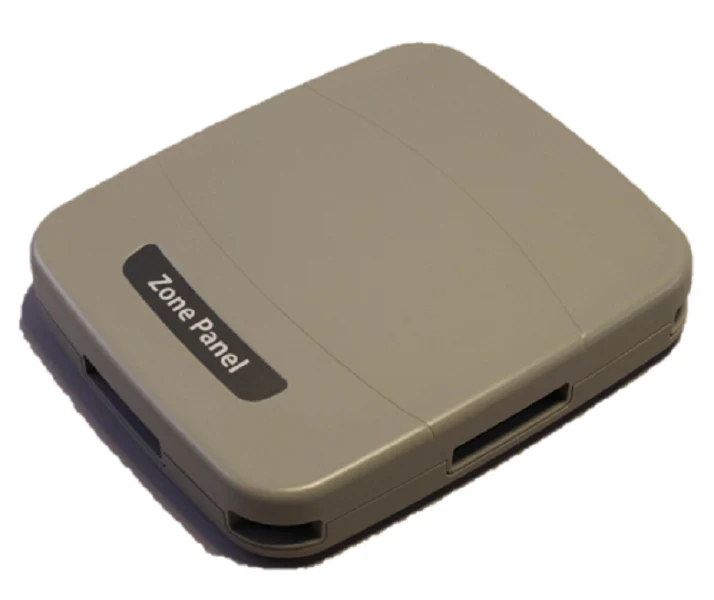

Trane ZZONEPNLAC52ZB Control
For technicians scaling ComfortLink II systems, the Trane ZZONEPNLAC52ZB Zone Expander Control is the requisite 4-zone panel assembly for high-performance variable speed indoor units. This HVAC zone control system integrates seamlessly with Trane and American Standard air handlers and gas furnaces, utilizing a 24V architecture to manage up to four independent environmental zones. Engineered with an advanced microprocessor, this digital HVAC controller automates critical air balancing by auto-detecting installed dampers and setting maximum CFM per zone, eliminating the manual guesswork often associated with complex duct designs.
The kit includes a communicating zone panel, a dedicated discharge air sensor, and a static pressure transducer to ensure precise variable speed airflow management. It supports both 2-wire temperature sensors (ZZSENSAL0400AA) and 3-wire touchscreen interfaces (TZONE940), allowing for flexible field wiring. With an adjustable damper motor travel time of 15 to 60 seconds and a backlit LCD for real-time diagnostics, this multi-zone control logic ensures peak efficiency and thermal stability across the entire building envelope.
Key Benefits- Precision Air Balancing: Features an integrated static pressure transducer and discharge air sensor for automated zone sizing and CFM optimization.
- Flexible Compatibility: Designed for variable speed communicating equipment but expandable to conventional 24V systems via the BAY24VRPAC52DB relay panel.
- Streamlined Commissioning: The backlit LCD display and auto-damper detection significantly reduce setup time for complex residential or light commercial zoning.
- Dynamic Damper Control: Manages 24V power-open and power-close modulating dampers with adjustable travel times to prevent duct noise and pressure spikes.
- Can I use this with a non-communicating furnace? Yes, but it requires the addition of a 24V relay panel (BAY24VRPAC52DB/DC) to bridge the communication gap.
- How many zones can this panel handle? This specific module manages up to 4 zones. For systems requiring 5 to 8 zones, an additional ZZONEEXPAC52ZB expander is required.
- What type of sensors are supported? It is compatible with standard 2-wire remote indoor sensors and 3-wire communicating zone sensors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $502.11
-65%$502.11
$175.74Trane ZZONEPNLAC52ZB Control
For technicians scaling ComfortLink II systems, the Trane ZZONEPNLAC52ZB Zone Expander Control is the requisite 4-zone panel assembly for high-performance variable speed indoor units. This HVAC zone control system integrates seamlessly with Trane and American Standard air handlers and gas furnaces, utilizing a 24V architecture to manage up to four independent environmental zones. Engineered with an advanced microprocessor, this digital HVAC controller automates critical air balancing by auto-detecting installed dampers and setting maximum CFM per zone, eliminating the manual guesswork often associated with complex duct designs.
The kit includes a communicating zone panel, a dedicated discharge air sensor, and a static pressure transducer to ensure precise variable speed airflow management. It supports both 2-wire temperature sensors (ZZSENSAL0400AA) and 3-wire touchscreen interfaces (TZONE940), allowing for flexible field wiring. With an adjustable damper motor travel time of 15 to 60 seconds and a backlit LCD for real-time diagnostics, this multi-zone control logic ensures peak efficiency and thermal stability across the entire building envelope.
Key Benefits- Precision Air Balancing: Features an integrated static pressure transducer and discharge air sensor for automated zone sizing and CFM optimization.
- Flexible Compatibility: Designed for variable speed communicating equipment but expandable to conventional 24V systems via the BAY24VRPAC52DB relay panel.
- Streamlined Commissioning: The backlit LCD display and auto-damper detection significantly reduce setup time for complex residential or light commercial zoning.
- Dynamic Damper Control: Manages 24V power-open and power-close modulating dampers with adjustable travel times to prevent duct noise and pressure spikes.
- Can I use this with a non-communicating furnace? Yes, but it requires the addition of a 24V relay panel (BAY24VRPAC52DB/DC) to bridge the communication gap.
- How many zones can this panel handle? This specific module manages up to 4 zones. For systems requiring 5 to 8 zones, an additional ZZONEEXPAC52ZB expander is required.
- What type of sensors are supported? It is compatible with standard 2-wire remote indoor sensors and 3-wire communicating zone sensors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
