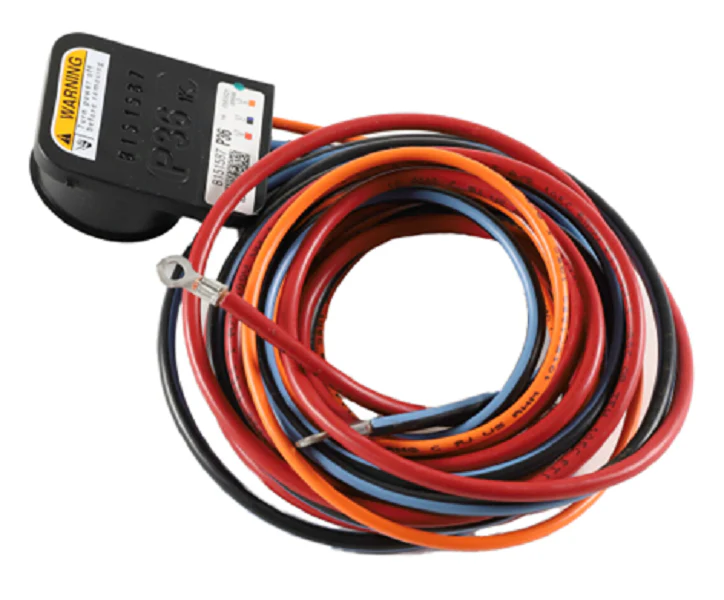

Trane WIR4816 Wire/Plug
For field technicians and mechanical contractors servicing Trane cooling systems, the Trane WIR4816 (also identified as WIR04816) is a critical scroll compressor wire harness designed for clean, reliable electrical terminations. This OEM replacement scroll compressor plug and lead set ensures a secure interface between the compressor and the main control harness, preventing high-resistance connections that lead to burnt terminals. Standard with color-coded wires for rapid identification, the WIR4816 provides a factory-perfect fit that supports the consistent power delivery required for high-efficiency AC unit electrical systems. Whether you are performing a compressor replacement or troubleshooting intermittent power loss, this pre-assembled HVAC wire harness eliminates the need for manual splicing and field-crimping, reducing the risk of phasing errors in Trane 4TTR and 4TTX series units. Using an OEM Trane part aligns the system with original factory specifications, maintaining the electrical integrity of the residential or light commercial condenser wiring.
Key Benefits for Technicians:- Factory-Spec Connectivity: Precision-molded scroll compressor connector ensures a snug, moisture-resistant fit on the compressor pins.
- Streamlined Installation: 12-inch pre-labeled wire leads facilitate quick integration into existing control circuits and contactors.
- System Reliability: Heavy-duty electrical insulation rated for high-ambient temperatures commonly found in outdoor condenser sections.
- Universal Compatibility: Engineering-matched for a wide range of Trane and American Standard scroll compressor models, including 3 to 5-ton units.
- Is the WIR4816 compatible with 3-phase compressors? This harness is typically configured for single-phase scroll compressors; always verify the compressor pin configuration against the unit’s wiring diagram before installation.
- What causes the original plug to fail? Most scroll compressor plugs fail due to loose connections causing arcing or heat buildup; replacing the harness alongside the compressor is a professional best practice.
- Does this include the molding for the terminal pins? Yes, the WIR4816 features the integrated molded plug that secures directly onto the compressor’s hermetic terminals.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $25.22
-65%$25.22
$8.83Trane WIR4816 Wire/Plug
