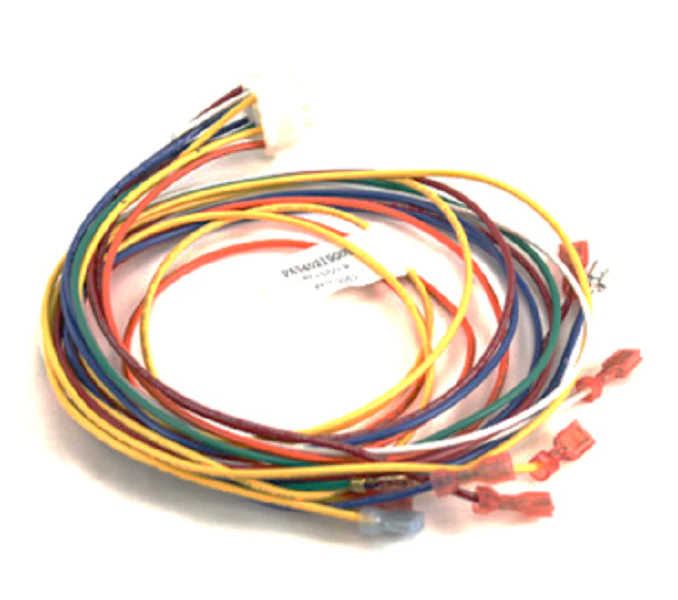

Trane WIR2360 Wiring Harness
When you're troubleshooting signal loss or intermittent faults in a residential unit, the Trane WIR2360 Wiring Harness is the OEM replacement part you need for a reliable fix. This assembly, also identified under part number WIR02360, features a specialized 12-pin male connector designed for a precise, secure mate with the female socket on the HVAC control board. Measuring 3 inches in length, this factory-terminated harness eliminates the need for field crimping, ensuring high-integrity electrical connection and proper signal transmission between critical furnace and evaporator coil components.
Built for durability in high-cycle environments, this furnace wire harness simplifies HVAC repair by replacing messy individual wire runs with a single, organized multi-pin bundle. It is engineered specifically for compatibility with a wide range of Trane and American Standard gas furnaces, including models within the TDE, ADD, and TDD series. Utilizing genuine OEM parts like the WIR2360 maintains the original factory specifications and prevents the intermittent communication errors common with generic aftermarket alternatives.
Key Benefits for Technicians:- Direct Plug-and-Play Design: The 12-pin connector provides a secure, vibration-resistant electrical connection for HVAC systems without manual splicing.
- Optimized Signal Integrity: Factory-terminated ends ensure clean data and power flow, reducing technical callbacks for furnace maintenance and repair.
- OEM Compatibility: Precision-fit for Trane WIR2360 and WIR02360 applications, supporting equipment efficiency and safety standards.
- Reduced Installation Time: Replaces existing 3-inch harness assemblies quickly during furnace component replacement.
Which HVAC models is the WIR2360 compatible with?
This harness is primarily utilized in Trane and American Standard gas furnaces and evaporator coils, specifically those requiring a 12-pin control board interface such as the TDD and ADD furnace lines.
Can this harness be used to resolve intermittent control board errors?
Yes. If internal pins in the original harness have corroded or loosened, replacing them with a new Trane WIR2360 ensures solid contact and eliminates faults caused by poor continuity.
Is the WIR02360 the same as the WIR2360?
Yes, WIR02360 is the current manufacturer part number and is a direct replacement for the previous WIR2360 part number.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
