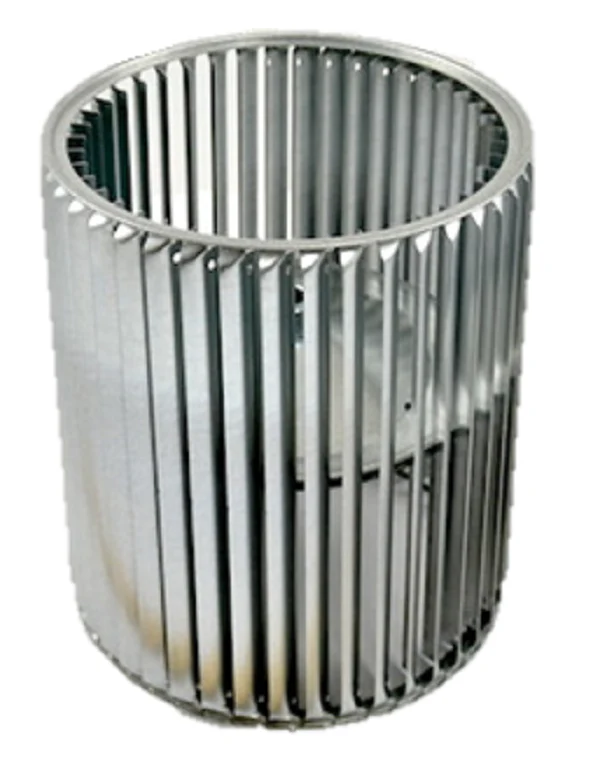

Trane WHL2204 Blower Wheel
The Trane WHL2204 Blower Wheel is a precision-engineered OEM HVAC replacement part designed for high-static pressure applications in Trane and American Standard air handlers and furnaces. As a veteran-grade centrifugal blower fan, it features a 12.87-inch diameter and a 12.62-inch width, specifically balanced to eliminate vibration and cabinet resonance. This Trane WHL02204 model utilizes a 1-inch bore set screw hub and operates with a clockwise (CW) rotation (determined by viewing from the hub/bore side). Constructed from heavy-duty galvanized steel, this wheel maintains structural integrity under high RPMs, ensuring consistent HVAC airflow optimization and static pressure performance. When replacing a failed blower wheel, verifying the Trane WHL2204 compatible models is essential to prevent motor overloading or improper blade pitch alignment. This industrial-grade blower wheel is built to the exact specifications required to restore factory-rated CFM delivery in commercial and residential air distribution systems.
Key Technical Benefits
- OEM Precision Balance: Engineered as a genuine Trane replacement blower wheel to minimize shaft wear and bearing stress on the blower motor.
- High-Volume Air Displacement: Optimized blade curvature for maximum cubic feet per minute (CFM) output and system efficiency.
- Corrosion Resistance: Fabricated with durable materials to withstand moisture and environmental stressors within the air handler.
- Direct Fit Installation: Features a standard 1-inch bore hub for secure attachment to existing motor shafts without modifications.
Common Questions
How do I determine the rotation for the Trane WHL2204?
Rotation is determined by looking at the blower wheel from the hub or motor side. This specific unit is Clockwise (CW) rotation. Installing a wheel with the incorrect rotation will result in significantly reduced airflow and potential motor overheating.
Will this blower wheel fit my specific Trane air handler?
The Trane WHL2204 is a common component in several larger tonnage residential and light commercial units. You should match the part number from your existing assembly or verify the 12.87x12.62 dimensions and 1-inch bore before installation.
What are the signs that I need to replace my HVAC blower wheel?
Excessive vibration, unusual harmonic noises (humming or rattling), or visible "cupping" or debris buildup on the blades are indicators that the blower fan wheel is out of balance or structurally compromised.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
