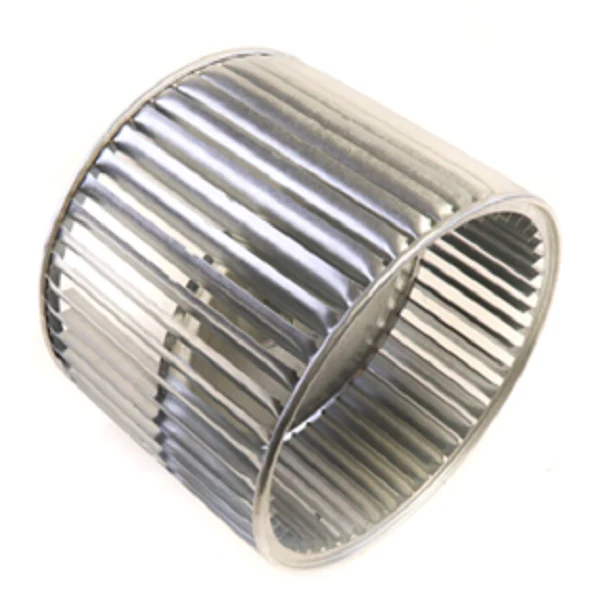

Trane WHL0503 Wheel
The Trane WHL0503 Blower Wheel is a precision-engineered 10x8 CW Steel Wheel specifically designed for high-static pressure environments in HVAC blower assemblies. This OEM Trane replacement wheel features a 1/2 inch bore and is constructed from heavy-duty galvanized steel to ensure dynamic balance and vibration-free operation at high RPMs. As a direct replacement for discontinued part numbers including Trane WHL00503, it maintains critical airflow performance and static pressure integrity within residential and light commercial air handlers and furnaces.
Engineered for clockwise (CW) rotation, the WHL0503 utilizes forward-curved blades to maximize cubic feet per minute (CFM) output while minimizing motor strain. For contractors performing a field blower wheel replacement, this steel wheel offers the structural rigidity needed to prevent "hunting" or resonant frequencies that lead to premature motor failure. Ensure the motor shaft is cleaned and deburred before sliding the 1/2" bore onto the shaft to maintain a secure, true fit and optimal concentricity.
Key Benefits:- Galvanized Steel Construction: Offers superior resistance to corrosion and structural deformation under high thermal loads compared to plastic alternatives.
- Precision Dynamic Balancing: Reductions in vibration extend the operational life of the blower motor bearings and housing.
- High-Efficiency Air Distribution: Forward-curved blade geometry is optimized for the strict cabinet clearances of Trane and American Standard units.
- Exact OEM Compatibility: Eliminates the need for shaft modifications or housing adjustments often required with universal aftermarket wheels.
- How do I confirm the rotation of my existing wheel? View the wheel from the hub/bore side; the Trane WHL0503 is designed to rotate clockwise (CW) to move air effectively.
- Does this wheel include the hub set screw? Yes, the integrated hub includes a standard set screw for securing the 1/2 inch bore to the flat of the blower motor shaft.
- Can I use this to replace a plastic blower wheel? Provided the dimensions (10x8) and bore (1/2") match, this steel wheel is a durable upgrade that handles higher heat and static pressure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
