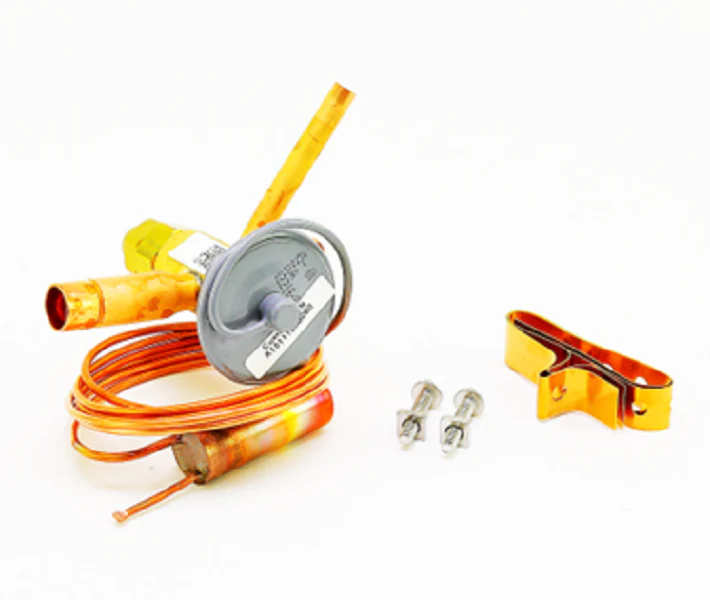

Trane VAL9576 TXV
The Trane VAL9576 is a professional-grade R-410A thermostatic expansion valve designed for precision refrigerant metering in high-capacity light commercial and residential split systems. This 8-ton TXV features an O-ring face seal (ORFS) connection configuration with 1/2 x 5/8 inch fittings, ensuring a reliable mechanical seal under high-pressure conditions. With a 60-inch capillary tube length, this valve offers flexible sensing bulb placement for accurate superheat control, preventing liquid slugging and protecting the compressor during varied load conditions.
Built for compatibility with Trane and American Standard air handlers and evaporator coils, the VAL09576 utilizes an internally equalized design to maintain consistent evaporator efficiency. Field technicians will find the bolt-on TXV design simplifies the replacement process compared to sweat-in alternatives, reducing installation time during service calls. This HVAC expansion valve is essential for restoring system performance to OEM specifications, particularly in 8-ton R410A systems requiring tight thermal regulation.
- System Compatibility: Engineered specifically for 8-ton R410A air conditioning and heat pump applications.
- Precise Metering: Maintains optimal superheat to maximize heat transfer efficiency across the evaporator coil.
- Durable Construction: High-grade brass body and stainless steel components resist corrosion and withstand high-cycle operations.
- Installation Flexibility: The 60" capillary lead allows for proper bulb positioning on various suction line diameters.
- Connection Type: 1/2" x 5/8" connections provide a secure fit for standard refrigerant lines.
Common Contractor Questions
Is this TXV compatible with R-22 systems?
No, the VAL9576 is calibrated specifically for R-410A refrigerant pressures and flow rates. Using this valve with other refrigerants will result in improper metering and potential compressor damage.
Does this valve require an external equalizer line?
This specific model is designed for systems that match its internal configuration; always verify the suction line pressure drop to ensure an internal equalizer is appropriate for your specific coil pressure drop.
Can this be used on 7.5-ton or 10-ton units?
This Trane TXV is rated for 8-ton capacity. Undersizing or oversizing the expansion valve can lead to refrigerant hunting or evaporator floodback, so it should only be used in applications matching its tonnage rating.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
