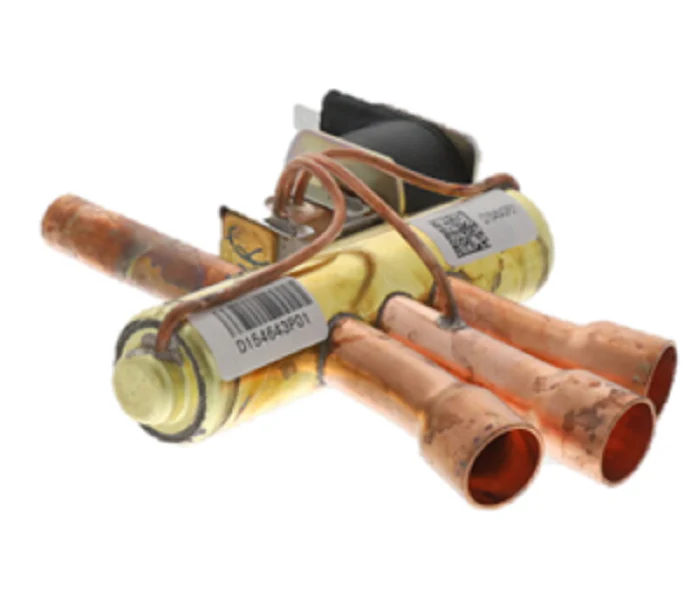

Trane VAL9013 Valve
The Trane VAL09013 is a critical 4-way heat pump reversing valve engineered to manage refrigerant flow direction for 2-ton split systems. This OEM Trane replacement part features a 5/8" x 1/2" connection size and comes equipped with a pre-installed 24V solenoid coil for immediate integration on the service call. Designed for precise switchover operations, this component is compatible with high-efficiency Trane and American Standard models, including the 4TWZ and 4A6Z series. As a veteran technician knows, a stuck "canoe" or failed electrical solenoid is the primary culprit when a heat pump fails to switch between heating and cooling modes. The VAL09013 reversing valve ensures rapid response to thermostat signals, maintaining system pressure and refrigerant velocity within HVAC split system air pumps. When performing a changeover, always verify 24V signal arrival at the coil and use proper nitrogen purging techniques during brazing to prevent internal soot accumulation that can seize the sliding mechanism.
Key Benefits for HVAC Contractors:- Perfect 2-Ton Sizing: Correct tonnage prevents refrigerant flow restrictions or compressor overloading issues common with generic valves.
- Integrated 24V Coil: Eliminates the need to source a separate solenoid, ensuring electrical compatibility with standard 24-volt control circuits.
- Validated Compatibility: Specifically designed for 2-ton Trane heat pumps and American Standard AC units, reducing diagnostic and fitting time.
- Heavy-Duty Construction: Built to withstand the high-discharge temperatures and pressure differentials typical of year-round heat pump operation.
How do I confirm the VAL09013 has failed mechanically?
If you have 24V at the solenoid and can hear the "click," but the temperature differential across the discharge and suction lines doesn't shift, the internal slider is likely stuck. A manual magnet test can often confirm a mechanical seizure.
Is this a direct replacement for older 2-ton Trane valves?
Yes, the VAL09013 is the current standard for many 2-ton units. However, always check your specific model number against the 5/8" x 1/2" port sizing to ensure a drop-in fit without excessive piping modifications.
Can I replace just the coil instead of the whole valve?
If the failure is strictly electrical (open coil), you can swap the solenoid. However, if the system is stuck in one mode or bypassing internally, the entire reversing valve assembly must be replaced.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
