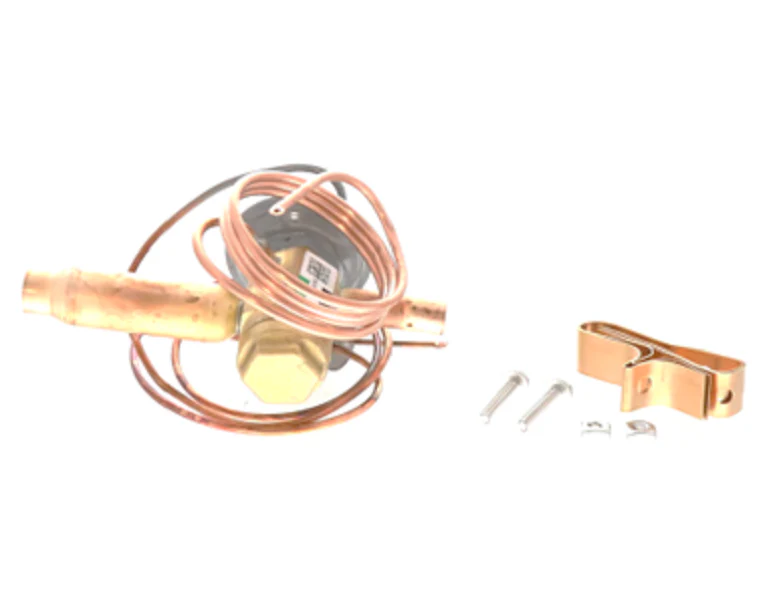

Trane VAL8683 Valve
The Trane VAL8683 is a high-precision thermostatic expansion valve (TXV) designed specifically for R22 refrigerant systems with a 3-ton nominal capacity. Engineered for field replacements and OEM repairs, this valve features a 3/8" inlet and a 1/2" outlet ODF connection, ensuring a secure fit in the liquid line. As an externally equalized component, the VAL8683 valve excels at maintaining precise superheat levels across varying load conditions, preventing liquid slugging and protecting the compressor. This HVAC expansion valve is a direct replacement for many older Trane and American Standard residential split systems and package units. Utilizing a TXV for R22 systems ensures optimal evaporator coil feeding, especially in high-static or fluctuating ambient environments. For contractors performing retrofits or repairs, verifying the Trane 3-ton TXV compatibility with the specific evaporator coil model is essential for restoring system efficiency and peak thermodynamic performance.
Key Technical Benefits- Precise Refrigerant Metering: Maintains consistent superheat to maximize evaporator heat transfer efficiency.
- OEM Compatibility: Designed as a direct-fit Trane VAL8683 replacement for seamless integration into existing 3-ton circuits.
- Durable Construction: Built to withstand high-pressure environments common in older R22 residential setups.
- System Protection: Actively modulates flow to prevent compressor damage caused by refrigerant floodback.
- Standard Connections: Features 3/8 x 1/2 ODF solder ports for reliable, leak-free installation.
What are the symptoms of a failing Trane VAL8683 TXV?
Common indicators include high suction pressure, low head pressure, or a frosted evaporator coil caused by an improper refrigerant metering rate.
Can this R22 TXV be used with R410A systems?
No, the Trane VAL8683 is calibrated specifically for the pressure-temperature characteristics of R22. Using it with R410A will result in incorrect superheat and potential system failure.
Is the external equalizer line required for installation?
Yes, this is an externally equalized TXV; the equalizer line must be connected to the suction line near the sensing bulb to accurately sense evaporator pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
