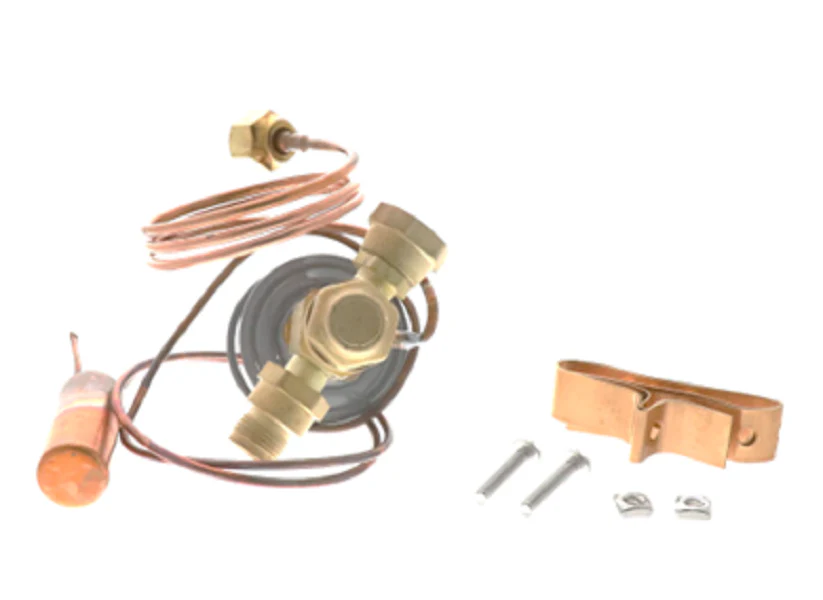

Trane VAL8616 TXV

The Trane VAL8616 TXV is a critical OEM metering device designed for R-22 refrigerant systems with a 2.5-ton capacity. This thermostatic expansion valve features a 5/8" inlet and a 20-inch capillary tube, ensuring precise superheat control to protect the compressor from liquid slugging while maximizing evaporator efficiency. As a veteran-grade HVAC replacement part, it maintains the pressure drop required to transform high-pressure liquid refrigerant into a low-pressure saturated vapor, stabilizing system performance during varying thermal loads.

Key Benefits:

• OEM Compatibility: Specifically engineered for Trane and American Standard 2.5-ton air conditioning units and heat pumps.
• System Protection: Precisely regulates refrigerant flow to prevent compressor flooding and ensure optimal heat transfer.
• Accurate Sensing: The 20" capillary and sensing bulb provide responsive feedback for maintaining consistent superheat levels.
• Standardized Connections: Features a 5/8" connection for seamless integration into existing liquid lines.

Common Questions:

• What are the symptoms of a failing VAL8616 expansion valve? Common indicators include a frozen evaporator coil, fluctuating head pressures, or the system running constantly without reaching the setpoint.
• Can this R-22 TXV be used in R-410A systems? No, this valve is calibrated specifically for the pressure-temperature characteristics of R-22; always match the valve to the refrigerant type indicated on the unit nameplate.
• Does the capillary length matter during installation? Yes, the 20-inch length provides the necessary reach for proper bulb placement on the suction line, which is vital for accurate temperature sensing.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
