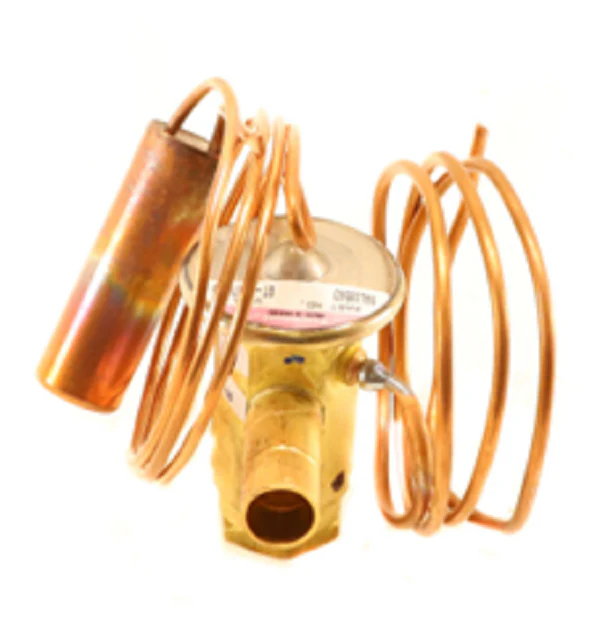

Trane VAL8593 TXV
The Trane VAL8593 TXV is a critical metering component designed for high-performance 4-ton R410A systems. Built for durability and precision, this thermostatic expansion valve features a 5/16-inch ODM inlet and a 1/2-inch ODF outlet, facilitating a secure solder connection for leak-free operation in residential and light commercial applications. As a veteran technician knows, maintaining precise evaporator superheat is non-negotiable for system longevity. The VAL8593 effectively regulates refrigerant mass flow into the coil, adjusting dynamically to varying thermal loads to prevent the two biggest killers of HVAC compressors: liquid floodback and overheating. This valve utilizes an external equalizer to ensure accurate pressure sensing across the evaporator, maintaining a factory-set superheat of approximately 8.5 PSIG setpoint. Whether you are performing a TXV replacement to fix a frozen evaporator coil or conducting a complete system overhaul, the VAL8593 provides the reliable refrigerant control required to maximize SEER ratings and ensure consistent cooling performance across the indoor coil.
Key Benefits- Optimized Refrigerant Flow: Engineered specifically for 4-ton air conditioning units using R410A refrigerant to ensure maximum heat transfer efficiency.
- Compressor Protection: Maintains strict control over superheat levels, shielding the compressor from damaging liquid slugging during low-load conditions.
- Precision Metering: Features a high-quality sensing bulb and capillary assembly for rapid response to evaporator temperature changes.
- Robust Construction: Designed with a straight-through configuration and durable solder connections to withstand high maximum operating pressures (MWP) up to 700 PSI.
- OEM Compatibility: A direct-fit Trane replacement part, ensuring seamless integration with existing evaporator coils and line sets without extensive modification.
How do I diagnose if my Trane TXV is failing?
Technicians should look for high superheat at the evaporator outlet (underfeeding) or frost buildup on the suction line and compressor (overfeeding). Inconsistent cooling and fluctuating suction pressures are also primary indicators that the VAL8593 is stuck or restricted by contaminants.
Is the VAL8593 adjustable for different superheat settings?
This specific model is a non-adjustable, fixed-superheat valve designed for factory-standard performance. Always verify your subcooling and airflow before assuming the valve requires replacement, as these factors often mimic TXV failure symptoms.
What is the correct mounting position for the sensing bulb?
To ensure accurate temperature sensing, the bulb should be securely strapped to a horizontal section of the suction line at the 4 or 8 o’clock position, well-insulated from ambient air temperature to prevent erroneous refrigerant metering.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $285.45
-65%$285.45
$99.91Trane VAL8593 TXV
