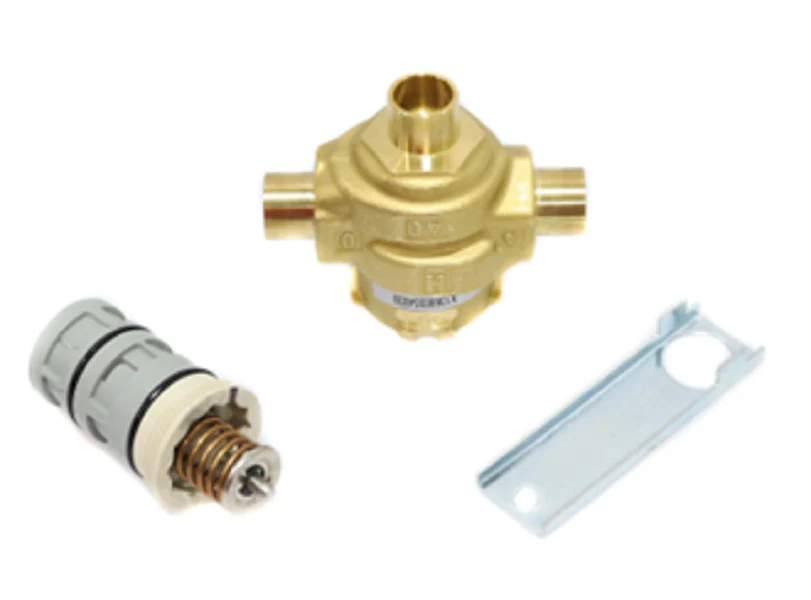

Trane VAL8561 Valve
The Trane VAL8561 is an OEM-grade 3-way modulating control valve precision-engineered for chilled water and hydronic heating applications. Built with a 1/2" sweat connection and a 1.5 Cv flow coefficient, this brass-body valve ensures stable flow regulation in fan coil units, VAV terminals, and reheat coils. The valve-less actuator configuration allows for high-accuracy mixing or diverting depending on your piping layout. By utilizing a 3-port design, the VAL8561 effectively manages refrigerant or liquid movement without the mechanical overhead of lower-tier alternatives. This Trane replacement valve is a critical component for technicians performing commercial HVAC maintenance or system balancing. Its robust construction resists thermal wear in demanding environments, ensuring consistent hydronic system performance. Designed for direct mounting, the unit simplifies field replacement protocols by allowing actuator swaps without breaking the pipe seal. Rely on this genuine Trane HVAC part for exact compatibility with existing 24V floating point control systems.
Key Benefits- Precise Flow Control: A 1.5 Cv rating provides optimized fluid dynamics for small-bore hydronic circuits.
- Application Versatility: Seamlessly switch between mixing and diverting configurations by adjusting port orientation.
- Contractor-Friendly Installation: Standard 1/2-inch sweat connections ensure a secure, leak-free fit in standard copper lines.
- Reduced Maintenance Downtime: The valve-less actuator design simplifies the replacement of control heads without system drainage.
- OEM Reliability: Direct replacement for Trane equipment maintains factory-spec operational efficiency.
Is the actuator included with this valve?
No, the VAL8561 is a "valve-less actuator" model, meaning it is the brass valve body only. It is designed to be paired with a compatible Trane 24V modulating or floating point actuator.
Can this valve be used for 2-way applications?
Yes, this 3-port body can be converted for 2-way control by using an NPT plug (typically on the B port) with proper thread sealant, though it is optimized for 3-way mixing or diverting.
What is the maximum operating pressure for this unit?
While specific system limits depend on the integrated actuator, the brass body is rated for standard commercial hydronic pressures, typically exceeding 200 psi for static body strength.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
