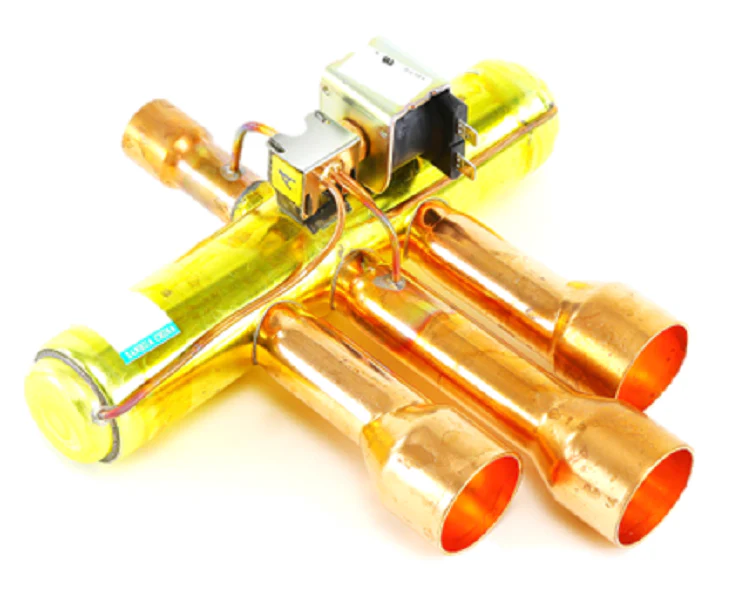

Trane VAL8224 Valve
Engineered for high-capacity heat pump systems, the Trane VAL8224 Valve is a 4-way reversing component essential for managing refrigerant flow reversal between heating and cooling cycles. This heavy-duty Trane OEM replacement part features a 7/8" ODF discharge and 1-3/8" ODF suction connection, facilitating high-flow efficiency in 5-ton and larger residential or light commercial split systems. The assembly includes a factory-matched 24V solenoid coil (often cross-referenced with COL11873 or COL14716), ensuring seamless integration with standard 24VAC control circuits without requiring secondary transformers.
Constructed with a rugged brass body and a precision-machined internal slide, the Trane VAL8224 is built to maintain tight seating under high-pressure differentials. Technicians often encounter stuck reversing valves or failed solenoid coils during troubleshooting; this genuine heat pump reversing valve restores the system's ability to switch modes reliably, preventing internal bypass leaks that compromise compressor performance and overall SEER ratings. When brazing, always use a wet rag to protect internal seals from heat damage. This 7/8 x 1 3/8 reversing valve is compatible with various TWA and TWE series units, offering a direct-fit solution for maintaining system integrity and thermal efficiency.
Key Benefits for HVAC Contractors- Genuine Trane HVAC Part: Ensures exact physical dimensions and port alignment for streamlined field installation.
- Complete 24V Assembly: Ships with the necessary 24V reversing valve coil for complete electrical and mechanical restoration.
- High-Flow Design: 7/8" x 1-3/8" ODF sweat connections provide low-pressure drop and optimized HVAC system performance.
- Durable Brass Construction: Resists corrosion and internal wear, maintaining a reliable seal between high and low-pressure sides.
- How do I confirm if the solenoid coil or the valve body has failed? Test for 24VAC at the solenoid coil while energized; if magnetism is present but the valve doesn't shift, the internal slide is likely stuck.
- Can this valve be used with R-410A systems? Yes, the Trane VAL8224 is designed to handle the operating pressures associated with modern refrigerants.
- Does this include the wire harness? Most kits are provided "without wire harness," requiring you to reuse the existing lead or splice the 24V connections.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
