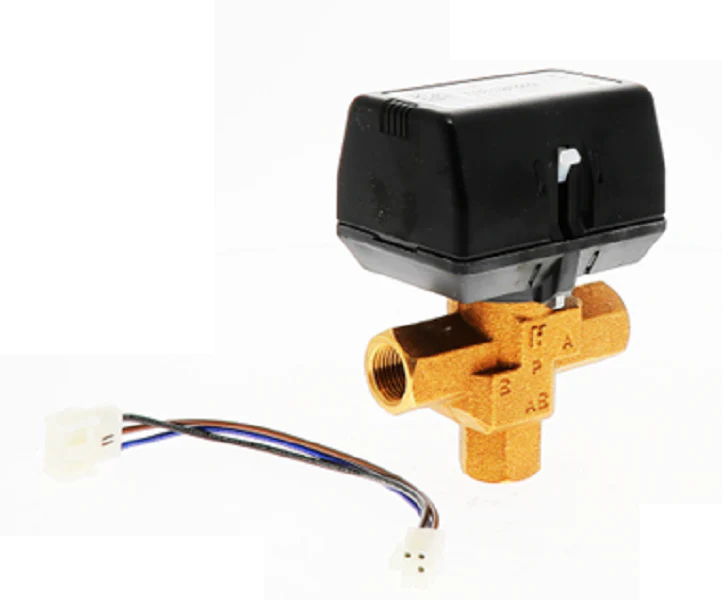

Trane VAL8025 Modulating Valve
The Trane VAL8025 Modulating Valve is a robust, field-reliable 1/2-inch 3-way control valve specifically engineered for hydronic flow modulation in commercial and industrial HVAC systems. Built with a heavy-duty bronze valve body, this OEM component provides a 3.8 Cv flow coefficient, ensuring precision fluid regulation for chilled and hot water applications. Field technicians frequently utilize the VAL8025 in terminal units, such as fan coils and reheat coils, where mixing and diverting flow control is critical for maintaining stable discharge air temperatures. This valve features an NPT female threaded connection and an intuitive stem-up-to-close actuation design, making it compatible with 24V floating point or proportional actuators. By replacing worn-out assemblies with this genuine Trane modulating water valve, contractors can eliminate hunting and improve the overall delta-T efficiency of the hydronic loop without the need for extensive piping modifications.
Key Benefits for Technicians- Precise Flow Control: The 3.8 Cv rating is optimized for fine-tuned modulation, preventing short-cycling and ensuring linear temperature response in small-to-medium terminal units.
- Versatile 3-Way Configuration: Engineered for both mixing and diverting applications, allowing for flexible piping layouts in complex hydronic circuits.
- High-Durability Construction: The bronze body material resists corrosion and scaling, extending the service life of the valve assembly in demanding water-side environments.
- Standardized Installation: Features 1/2" FNPT connections and a standard stem-up-to-close profile for seamless integration with existing Trane-compatible actuators.
Can the VAL8025 be used in a 2-way configuration?
Yes, while designed as a 3-way valve, this unit can be converted for 2-way operation by installing an NPT plug in the bypass port, provided the actuator and system pressure bypass are configured correctly.
What media is compatible with this modulating valve?
This valve is strictly designed for chilled and hot water systems. It is common for use in glycol-treated water loops within standard HVAC operating temperature ranges.
Which actuators are compatible with the VAL8025?
It is compatible with Trane 24V floating point actuators and many standard third-party proportional actuators that support a 1/2" stem-up-to-close linkage. Always check the stroke length and force requirements before mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $348.41
-65%$348.41
$121.94Trane VAL8025 Modulating Valve
The Trane VAL8025 Modulating Valve is a robust, field-reliable 1/2-inch 3-way control valve specifically engineered for hydronic flow modulation in commercial and industrial HVAC systems. Built with a heavy-duty bronze valve body, this OEM component provides a 3.8 Cv flow coefficient, ensuring precision fluid regulation for chilled and hot water applications. Field technicians frequently utilize the VAL8025 in terminal units, such as fan coils and reheat coils, where mixing and diverting flow control is critical for maintaining stable discharge air temperatures. This valve features an NPT female threaded connection and an intuitive stem-up-to-close actuation design, making it compatible with 24V floating point or proportional actuators. By replacing worn-out assemblies with this genuine Trane modulating water valve, contractors can eliminate hunting and improve the overall delta-T efficiency of the hydronic loop without the need for extensive piping modifications.
Key Benefits for Technicians- Precise Flow Control: The 3.8 Cv rating is optimized for fine-tuned modulation, preventing short-cycling and ensuring linear temperature response in small-to-medium terminal units.
- Versatile 3-Way Configuration: Engineered for both mixing and diverting applications, allowing for flexible piping layouts in complex hydronic circuits.
- High-Durability Construction: The bronze body material resists corrosion and scaling, extending the service life of the valve assembly in demanding water-side environments.
- Standardized Installation: Features 1/2" FNPT connections and a standard stem-up-to-close profile for seamless integration with existing Trane-compatible actuators.
Can the VAL8025 be used in a 2-way configuration?
Yes, while designed as a 3-way valve, this unit can be converted for 2-way operation by installing an NPT plug in the bypass port, provided the actuator and system pressure bypass are configured correctly.
What media is compatible with this modulating valve?
This valve is strictly designed for chilled and hot water systems. It is common for use in glycol-treated water loops within standard HVAC operating temperature ranges.
Which actuators are compatible with the VAL8025?
It is compatible with Trane 24V floating point actuators and many standard third-party proportional actuators that support a 1/2" stem-up-to-close linkage. Always check the stroke length and force requirements before mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
