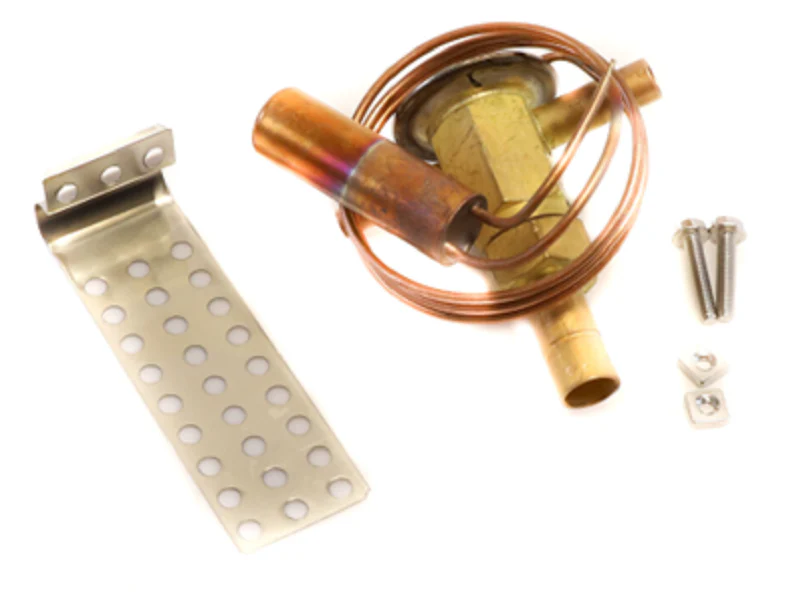

Trane VAL3614 TXV
The Trane VAL3614 TXV is a critical OEM replacement thermal expansion valve designed for R-22 systems with a 1-ton cooling capacity. Engineered for precision refrigerant metering, this thermostatic expansion valve features a 3/8" x 1/2" ODF sweat connection and a 30-inch capillary tube, ensuring accurate superheat control even under fluctuating load conditions. The VAL3614 utilizes a non-bleed design and a thermal sensor bulb to regulate flow into the evaporator coil, preventing liquid floodback and protecting the compressor. Constructed with stainless steel and rated for a 500-700 PSI working pressure, this metering device is a standard site-fix for Trane air conditioner and heat pump units experiencing starving or hunting issues.
Key Benefits:- Precise Refrigerant Control: Maintains optimal superheat to maximize evaporator efficiency in R-22 1-ton systems.
- Durable Construction: High-grade stainless steel body resistant to corrosion and high-pressure environments.
- OEM Compatibility: Genuine Trane VAL3614 ensures exact mechanical fit and performance for legacy HVAC equipment.
- Ease of Installation: Standard 3/8" x 1/2" sweat connections accommodate common liquid and suction line sizes.
- What are the symptoms of a failing VAL3614 TXV? Common signs include a frozen evaporator coil, high superheat (starving), or erratic "hunting" pressures where the valve fails to settle.
- Does this valve work with R-410A? No, this specific model (VAL3614) is calibrated for R-22 refrigerant only. High-pressure R-410A systems require a different power element and orifice sizing.
- Where should the sensing bulb be mounted? For a horizontal suction line, mount the bulb at the 4 or 8 o’clock position. Ensure 100% metal-to-metal contact and insulate thoroughly to prevent influence from ambient air temperature.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
