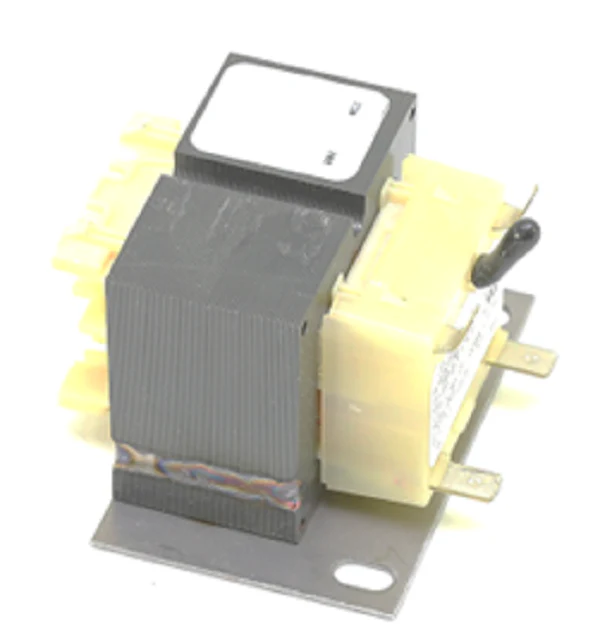

Trane TRR2404 Transformer
This Trane TRR2404 Transformer is a heavy-duty, 50VA rated component designed for seamless field replacement in residential and commercial climate systems. Engineered to handle a primary voltage of 208/240V, the TRR2404 delivers a stable 24V secondary output, providing the consistent low-voltage power necessary for control boards, contactors, and high-performance thermostats. As a genuine HVAC OEM replacement part, it mitigates common issues like humming or board failure caused by inferior universal alternatives. Its compact, rugged frame allows for easy mounting within tight air handler or furnace control cabinets. This 50VA HVAC transformer is a critical link for maintaining communication between the system's "brain" and its mechanical components. When troubleshooting "no-power" calls where the primary is present but the secondary is dead, the TRR2404 provides a drop-in solution that restores service without the need for extensive rewiring. Verify your load requirements to ensure the 2-amp output capacity meets your specific auxiliary accessory needs.
Key Benefits:
- Stable Control Power: Provides consistent 24VAC to protect sensitive HVAC control circuits and ignition systems.
- OEM-Spec Compatibility: Direct replacement for Trane TRR2404 and many American Standard units, ensuring precise alignment and bracket fit.
- Versatile Application: Optimized for high-demand 208/240V systems, including heat pumps and dual-stage air handlers.
- Thermal Reliability: Built with high-purity copper windings to resist overheating and premature coil degradation during peak load cycles.
Common Questions:
Can I use a 50VA transformer if my original was 40VA?
Yes, upgrading from a 40VA to a 50VA unit is a common practice among technicians. The higher VA rating provides a larger power overhead (approximately 2.08 amps versus 1.67 amps), which reduces the risk of the transformer burning out when powering modern smart thermostats or multiple zone dampers.
How do I verify the TRR2404 has failed?
With the power on, use a multimeter to check for 208V or 240V across the primary leads. If the primary voltage is present but there is 0V across the 24V secondary terminals, the internal coil has failed. Always check for a downstream short before installing a new transformer.
Is this transformer compatible with 120V systems?
No, this specific model is designed for 208/240V primary input. Applying 120V will result in a secondary output of approximately 12V, which is insufficient to pull in contactors or power control boards.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
