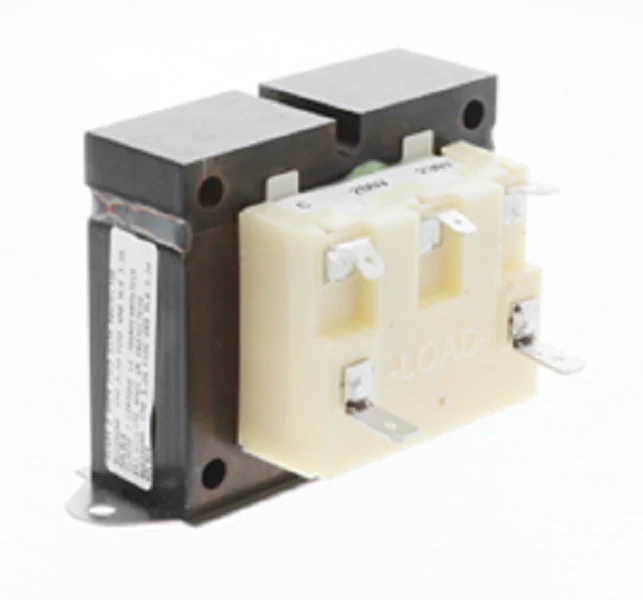

Trane TRR1581 Transformer
The Trane TRR1581 Transformer is a heavy-duty 75VA HVAC replacement part engineered for demanding residential and commercial applications. Designed to step down 200-230V primary voltage to a stable 24V secondary output, this component ensures consistent low-voltage power for critical systems including furnace control boards, 24V thermostats, and contactor coils. As a genuine Trane OEM transformer, it eliminates the guesswork of universal fitments, providing exact mounting alignment and electrical characteristics for Trane air handlers, heat pumps, and packaged RTUs.
For technicians servicing HVAC 24V control circuits, the TRR1581 provides the necessary amperage capacity to handle multiple peripherals without voltage drop. This 75VA step-down transformer is a direct replacement for failing units that exhibit humming, thermal tripping, or open secondary windings. Its robust core construction is built to withstand the high-temperature environments typical of central air conditioner cabinets and blower compartments, ensuring reliable voltage regulation and field-proven performance.
Key Benefits for Contractors:
- System Compatibility: Designed specifically as an OEM replacement for Trane and American Standard equipment to ensure proper voltage taps.
- High VA Capacity: The 75VA power rating supports more complex low-voltage circuits, including zone dampers and electronic air cleaners, compared to standard 40VA units.
- Superior Heat Dissipation: Engineered with high-grade winding insulation to resist degradation in attic air handlers and rooftop environments.
- Optimized Power Delivery: Provides precise 24V secondary output from 230V primary lines to prevent erratic behavior in sensitive HVAC control boards.
Common Questions:
Can the TRR1581 replace a 40VA transformer?
Yes, as long as the primary and secondary voltages match (200-230V to 24V), a 75VA transformer can replace a lower VA unit, providing more overhead for the low-voltage circuit.
Is this transformer suitable for 208V systems?
The Trane TRR1581 is rated for 200-230V primary power, making it compatible with standard dual-voltage 208/230V HVAC equipment common in North American installations.
What are the symptoms of a failing TRR1581 transformer?
Common indicators include a lack of 24V at the thermostat, a tripped integrated circuit breaker (if equipped), or visible scorching on the primary or secondary windings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
