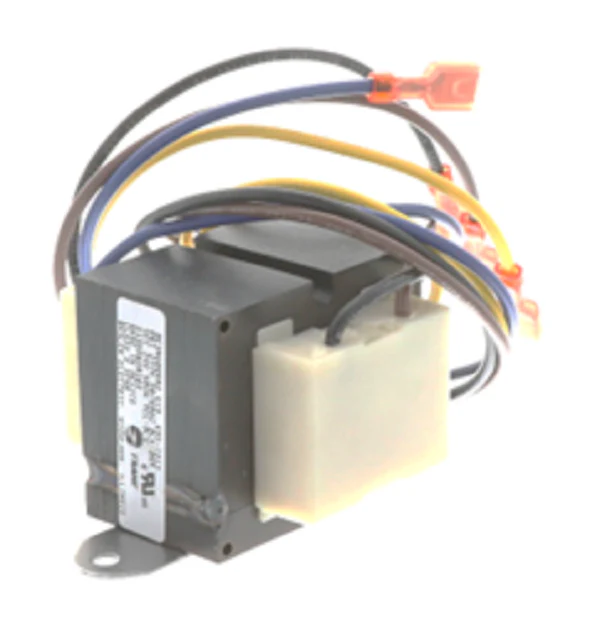

Trane TRR1036 Transformer
For high-demand commercial HVACR applications, the Trane TRR1036 Transformer provides the critical power step-down required to interface high-line voltage with low-voltage control circuits. This industrial-grade control transformer is engineered to convert a 277V primary input down to a stable 24V secondary output, making it a standard replacement for Trane rooftop units (RTUs), air handlers, and sophisticated control boards. With a 50VA power rating, it handles the inductive loads and inrush currents common in dual-stage contactors, relays, and multi-zone dampers without the saturation risks seen in undersized alternatives.
Built as a real OEM replacement part, the TRR1036 features a robust 50/60Hz frequency compatibility and integrated wire leads for fast, secure field wiring. The durable lamination and compact footprint allow it to fit seamlessly into existing electrical enclosures, ensuring matching performance on every truck-stock call. Whether you are troubleshooting a blank thermostat or a non-responsive fan motor, this 24VAC step-down transformer ensures your low-voltage components receive the exact 27.5V-24V potential needed for reliable system engagement.
Key Benefits- Precise Voltage Conversion: Efficiently steps down 277VAC to 24VAC for sensitive HVACR control logic.
- 50VA Capacity: Sufficient power for driving multiple contactors and low-voltage accessories simultaneously.
- OEM Compatibility: Exact replacement for Trane equipment to ensure proper mounting and lead lengths.
- Dual-Frequency Support: Operates at both 50Hz and 60Hz for versatile commercial and industrial applications.
- How do I test if my Trane TRR1036 is failing? Use a multimeter to check the primary side for 277V and the secondary side for 24V; a reading of 0V on the secondary side with live primary power often indicates an internal open winding.
- Can this transformer be used with a 120V or 208/230V primary? No, this is specifically a 277V to 24V transformer; applying the incorrect primary voltage will lead to component failure or lack of secondary output.
- What causes these transformers to burn out? Most failures result from short circuits in the low-voltage wiring, drawing more current than the 50VA rating allows, or from excessive heat due to over-tightened electrical connections in the control cabinet.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
