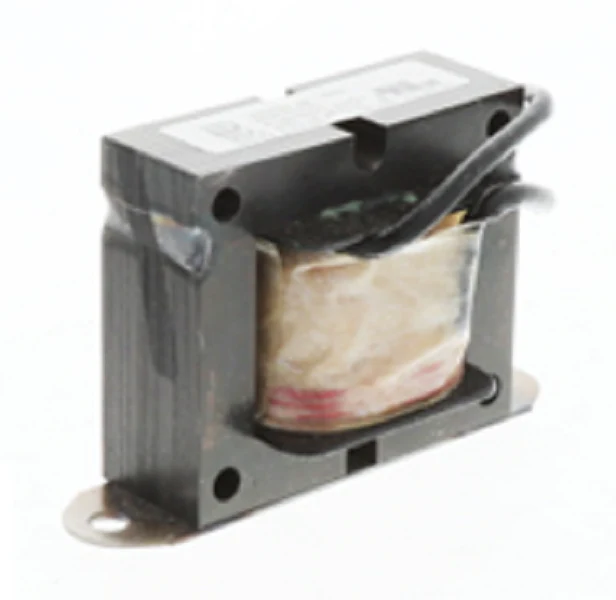

Trane TRR0946 Transformer
The Trane TRR0946 Line Choke Transformer is a critical inductive component engineered to manage power quality in industrial control panels and HVAC systems. As a veteran technician knows, line reactors or choke transformers are essential for mitigating the harmonic distortion and voltage spikes common in environments utilizing variable frequency drives (VFDs) or heavy motor loads. This Trane TRR0946 carries a 6A maximum current rating and operates efficiently at 50/60 Hz frequency, providing the necessary high-impedance barrier to suppress electrical transients and protect downstream sensitive electronics.
Ruggedly constructed for reliable voltage regulation, the TRR0946 features a compact 4.2-inch frame, making it an ideal fit for tight power distribution networks or internal air handler assemblies. By attenuating line noise and limiting inrush current, this transformer prevents premature component fatigue and maintains balanced system stability across varying load conditions. It is UL listed, ensuring compliance with strict safety standards for commercial and industrial applications including medical imaging and large-scale generator sets.
Key Benefits:- Phase Protection: Dampens electrical transients and surges that can compromise PCB integrity.
- Harmonic Mitigation: Reduces total harmonic distortion (THD) generated by non-linear loads.
- EMI/RFI Reduction: Improves line noise attenuation for cleaner signal processing in control circuits.
- Thermal Management: Engineered to handle high-frequency fluctuations with minimal heat buildup.
- Versatile Integration: 6A capacity suitable for a wide range of HVAC equipment and drive motors.
What is the primary function of the TRR0946 in an HVAC system?
It acts as a line choke to smooth out the incoming power supply, effectively shielding the system from voltage spikes and reducing electrical interference that causes erratic control behavior.
Can the TRR0946 handle both 50Hz and 60Hz power supplies?
Yes, the Trane TRR0946 is designed to operate on either 50/60 Hz frequency, making it compatible with various global industrial power standards.
Is this transformer suitable for VFD applications?
Absolutely. Using a line choke transformer like the TRR0946 on the line side of a VFD significantly improves voltage regulation and protects the drive's internal capacitors from line-side disturbances.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
