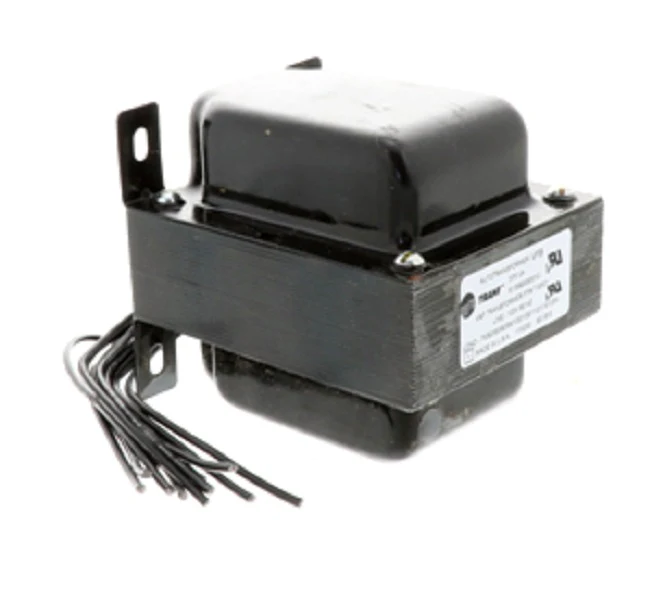

Trane TRR0765 Transformer
The Trane TRR0765 Transformer (effectively interchangeable with Trane TRR00765) is a heavy-duty 375VA HVAC transformer designed for demanding commercial power distribution and control circuits. As a veteran-grade 120V to 24V step-down transformer, it provides a stable 24VAC secondary output from a standard 120V primary input. This unit is specifically engineered to handle the inductive loads of multiple contactors, relays, and advanced control boards in Trane rooftop units and furnaces without voltage sag. Built with a robust foot-mount design and UL-recognized insulation, this replacement HVAC transformer is a critical component for maintaining system uptime in environments with high current demands, capable of supporting up to 3 Amps of continuous current on the secondary side. When performing an HVAC transformer replacement, the TRR0765 ensures reliable voltage conversion to prevent logic errors in 24V control circuits typically caused by undersized power supplies.
Key Benefits- Heavy-Duty Capacity: Rated at 375VA power capacity, providing ample headroom for complex HVAC control systems and auxiliary accessories.
- OEM Compatibility: This is a direct Trane OEM part, ensuring precise electrical matching for the Trane TRR00765 without the need for mounting modifications.
- Primary-Secondary Isolation: High-quality windings provide superior electrical isolation between 120V line voltage and the 24V class 2 control circuit.
- Reliable Performance: Engineered for industrial-grade thermal stability with a 131°F temperature rating to withstand cabinet heat during peak summer operation.
How do I troubleshoot a 375VA transformer that has no output?
First, verify 120V at the primary leads using a multimeter. If primary voltage is present but the secondary terminals show 0V, check for an inline fuse or internal breaker. If no fuse is blown, the internal windings have likely failed and the unit requires replacement.
Can I use the TRR0765 to replace a lower VA transformer?
Yes, you can upgrade from a 40VA or 75VA to this 375VA control transformer as long as the voltage ratings (120V/24V) match. This provides more current capacity, which is ideal if you are adding accessories like zone dampeners or high-draw electronic cleaners.
Are the TRR0765 and TRR00765 identical parts?
Yes, the Trane TRR0765 is the exact same component as the TRR00765. Trane frequently uses both part numbers for the same 375VA specification in their technical manuals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
