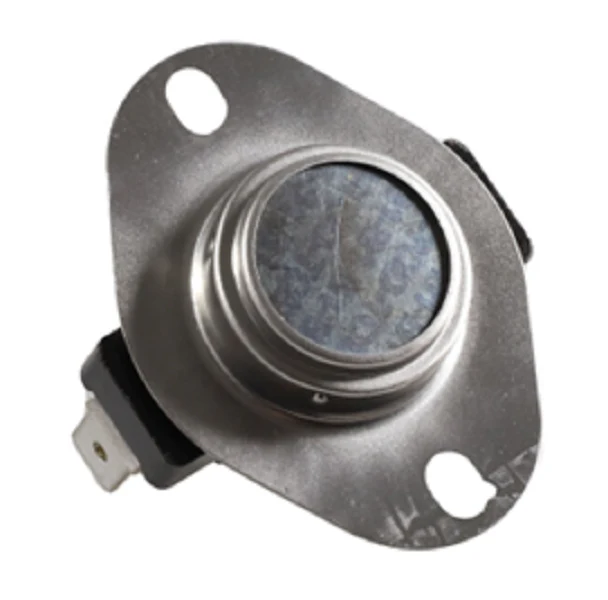

Trane THT3064 Limit Switch
The Trane THT3064 Limit Switch is a critical safety component designed for precise thermal monitoring in residential and commercial HVAC systems. As an OEM replacement part, this high-limit switch is engineered to handle the demanding thermal cycles of Trane and American Standard furnaces and air handlers. With a fixed open temperature of 165°F and a closing temperature of 105°F, it provides essential protection against heat exchanger overheating. Field technicians can rely on the THT3064 for a exact physical and electrical match when replacing faulty furnace limit switches. This bimetal thermostat limit ensures that the system maintains safe operating parameters, preventing premature component failure and ensuring consistent indoor climate control. Whether you are troubleshooting a burner that short-cycles or a blower motor delay, verified compatibility with Trane THT03064 specifications is vital for restoring equipment to factory performance standards.
Key Benefits for Technicians
- Reliable Thermal Protection: Precisely opens at 165°F to prevent heat exchanger damage and closes at 105°F for automatic system reset.
- Broad Compatibility: Direct OEM replacement for American Standard and Trane HVAC components, ensuring terminal alignment and mounting accuracy.
- Durable Construction: Built for high-cycle industrial environments, maintaining calibration over long-term operation in gas-fired heating units.
- Simplified Serviceability: Standard two-pin configuration allows for rapid installation and diagnostic testing during routine maintenance or emergency repairs.
Common Questions
What causes a Trane THT3064 limit switch to trip frequently?
In most HVAC troubleshooting scenarios, a tripped limit switch is caused by restricted airflow. Check for a dirty furnace filter, blocked return ducts, or a failing blower motor that is not moving enough air across the heat exchanger to keep temperatures below the 165°F threshold.
Is the THT3064 interchangeable with other temperature ratings?
No. For safety and performance, you should only replace a limit switch with one that matches the original manufacturer’s temperature specifications. Using a switch with a higher opening point can lead to catastrophic system damage or fire hazards.
How do I verify if my THT3064 is faulty?
Using a multimeter, technicians should check for continuity across the terminals when the switch is cool. If the switch remains open at room temperature (below 105°F), the internal bimetal disc or contacts have likely failed and the part requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
