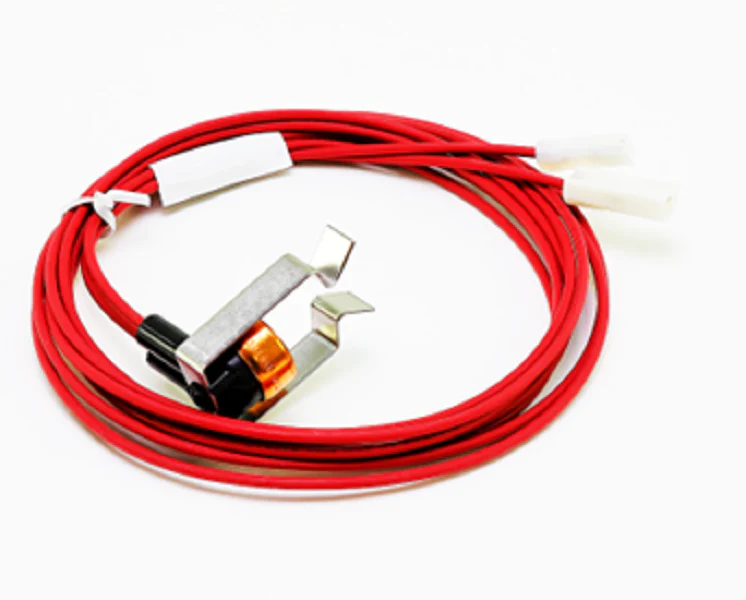

Trane THT2849 Limit
The Trane THT2849 Limit is a high-performance thermal safety control engineered for demanding commercial and industrial HVAC applications. Operating as a critical safeguard within the system's high-limit safety circuit, this adjustable high-limit switch features a sensing range of 180/230F. When plenum or heat exchanger temperatures exceed the specific setpoint, the switch interrupts the 24V signal to the gas valve or ignition control, effectively preventing equipment damage and ensuring safe operating parameters during high-intensity heating cycles.
Designed for seamless integration with Trane RTU (Rooftop Units) and industrial air handlers, the THT2849 serves as a direct OEM HVAC replacement part for technicians addressing short-cycling or thermal cutout issues. The robust construction and precise bi-metal disc mechanism provide rapid response times and consistent calibration. Whether you are performing a seasonal preventative maintenance check or a critical repair on a packaged unit, using a genuine furnace limit control ensures full compatibility with existing factory wiring harnesses and mounting footprints, maintaining the equipment's original safety certification and airflow efficiency.
Key Benefits:- Precise Thermal Monitoring: Provides accurate cut-out settings within the 180°F to 230°F range to prevent heat exchanger fatigue.
- High Compatibility: Specifically engineered for Trane HVAC systems, including high-capacity RTUs and packaged heating units.
- Enhanced System Safety: Actively monitors for restricted airflow or over-firing conditions to protect the internal components of the furnace.
- Durable OEM Design: Built to withstand the vibration and thermal stress typical of heavy-duty commercial heating environments.
What causes a Trane high limit switch to trip frequently?
Frequent tripping usually indicates restricted airflow, often due to a clogged air filter, a failing blower motor, or obstructed ductwork. After verifying these issues, the Trane THT2849 should be tested for continuity to ensure the internal contacts haven't failed.
How do I test the THT2849 during a service call?
Technicians should check for continuity across the terminals when the unit is cool. An open circuit during a cold state typically indicates a failed sensor that requires immediate replacement to restore heating signals.
Is this limit switch a manual or automatic reset?
This specific 180/230F limit is designed as a safety cutout. You must verify the specific system requirements, as high-limit safety controls in commercial RTUs are typically auto-resetting once temperatures fall below the differential, though repeated trips require diagnostic intervention.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
