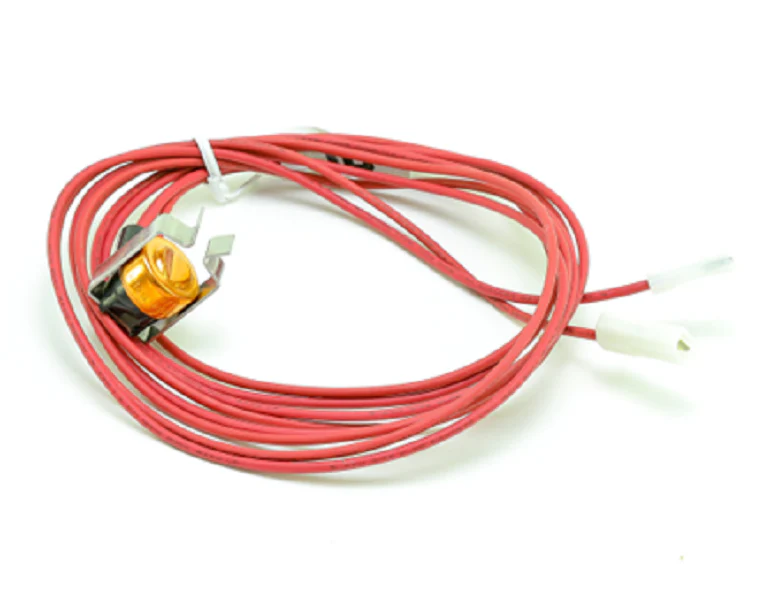

Trane THT2761 TSTAT
The Trane THT2761 TSTAT is a professional-grade high limit switch designed for critical thermal protection in Trane and American Standard HVAC units. This SPST (Single Pole Single Throw) thermostat operates on a fixed temperature curve, featuring a 230-degree Fahrenheit open setpoint and a 180-degree Fahrenheit close reset. Engineered for durability, this OEM furnace limit switch serves as a primary safety safeguard, automatically breaking the electrical circuit to the gas valve or heating elements if the plenum temperature exceeds safe operating parameters. The THT2761 includes a metal mounting clip for secure attachment to 0.5" or 0.625" tubing and is equipped with 72-inch red lead wires to facilitate clean routing through the furnace cabinet. Replacing a fouled or sticking limit control with this genuine Trane THT2761 ensures precise thermal response and prevents the nuisance tripping or short-cycling often associated with degraded aftermarket sensors.
Key Benefits- Precise Thermal Calibration: Calibrated to Open at 230°F and Close at 180°F, ensuring accurate high-temperature cutout performance.
- OEM Compatibility: Direct replacement for Trane THT2761 and American Standard high limit safety components found in TCD and THT series equipment.
- Rugged Electrical Design: Features a high-integrity SPST switch configuration for reliable circuit interruption in high-demand heating applications.
- Simplified Installation: Comes with pre-installed 72-inch wires and a universal tube mounting clip for fast field replacement by technicians.
- Safety Compliance: Built to meet original equipment standards for commercial and residential furnace thermal protection.
What are the signs that my furnace limit switch is failing?
Common indicators include the furnace blower running continuously, the system short-cycling, or the unit shutting down completely before reaching the desired temperature. If your furnace codes out with a high-limit error, the Trane THT2761 should be tested for continuity.
Can I use this for a downflow furnace application?
Yes, the THT2761 is frequently used in downflow vertical configurations where high heat exchanger temperatures require a specific 230F open threshold to prevent nuisance tripping during normal operation.
Does this switch reset automatically?
This is an automatic reset snap-disc switch. Once the temperature drops below the 180°F close point, the internal circuit will re-engage, allowing the heating cycle to resume without manual intervention once the safe temperature is restored.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
