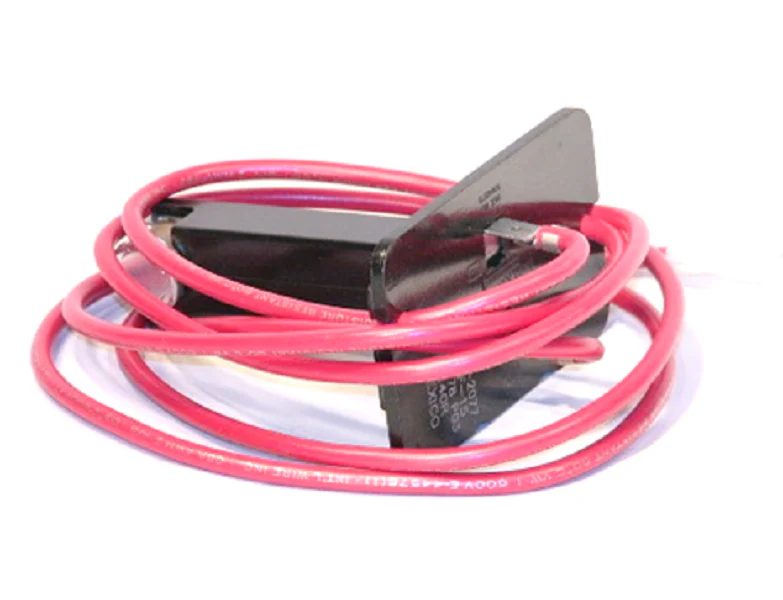

Trane THT1248 Thermostat
The Trane THT1248 Thermostat is a critical high-limit switch engineered for precision thermal protection in residential and light commercial HVAC systems. Functioning as a safety-critical normally closed (NC) control, this limit thermostat is designed to mechanically break the electrical circuit when the system reaches 150°F. This automated disruption immediately shuts down burners or heating elements, preventing heat-induced damage to the heat exchanger and ensuring the structural integrity of the furnace or boiler.
As a veteran-grade OEM replacement part, the THT1248 (also referenced as THT01248) offers seamless Trane furnace compatibility for gas-fired and oil-fired units. This 150 degree limit sensor is essential for maintaining operational safety protocols and preventing hazardous overheating conditions. When replacing a fixed temperature limit, verify that the 150°F open point matches your specific equipment's data plate requirements to maintain factory-spec airflow and safety cycles. Its robust design ensures reliable limit control in high-demand environments.
Key Benefits
- Thermal Protection: Prevents catastrophic heat exchanger failure by opening the circuit at exactly 150°F.
- Direct OEM Fit: Ensures exact mounting and terminal alignment for Trane and American Standard heating equipment.
- Safety Compliance: Acts as a primary overheat protection mechanism to mitigate fire risks and equipment fatigue.
- Simplified Integration: Designed for standard high-limit switch wiring configurations, allowing for rapid field replacement.
Common Questions
How do I know if the THT1248 limit switch is tripped?
If your furnace blower is running but the burner won't ignite, the Trane THT1248 may be in the open position due to an overheating event or internal component fatigue. Perform a continuity test across the terminals when the system is cool; if the circuit remains open at room temperature, the switch has failed and requires replacement.
What causes a 150°F high-limit switch to open frequently?
Frequent tripping usually indicates restricted airflow. Check for dirty HVAC filters, blocked return air grilles, or a failing blower motor. If the airflow is confirmed to be within spec, the sensor itself may have drifted out of calibration.
Is the THT1248 compatible with other brands?
While designed as a Trane THT1248 Thermostat, it may cross-reference with other brands using the same 150F open technical specifications. Always verify the mounting bracket style and electrical terminal orientation before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
