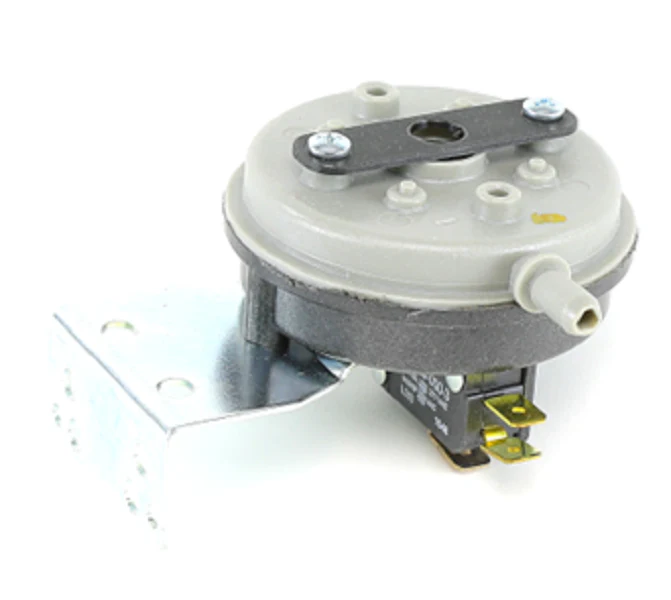

Trane SWT3814 Pressure Switch
The Trane SWT3814 Pressure Switch is an essential OEM safety component designed for precise pressure monitoring in high-output HVAC and refrigeration systems. This SPDT pressure switch (Single Pole Double Throw) provides flexible control over two separate circuits, allowing for seamless integration into various HVAC control systems. Engineered for a specific setpoint of -0.50" W.C., this differential pressure switch ensures the draft inducer motor maintains proper vacuum levels, effectively preventing furnace ignition during vent blockages or motor failures. The factory-included mounting bracket facilitates a fast, secure vertical installation, which is critical for maintaining diaphragm sensitivity and avoiding nuisance trips caused by gravitational pull on internal components. This genuine Trane replacement part is built to withstand the rigors of commercial and industrial environments, ensuring reliable inducer motor safety and long-term diagnostic accuracy.
Key Benefits:- Precise Pressure Regulation: Calibrated to open at -0.50 in. W.C. to ensure safety during varied atmospheric conditions.
- SPDT Logic: Single Pole Double Throw configuration allows the switch to manage multiple safety loops or signal the control board during pressure drops.
- Robust OEM Construction: Direct Trane SWT3814 replacement prevents the premature failure often seen with universal aftermarket alternatives.
- Simplified Mounting: Features a rugged Trane pressure switch bracket for direct-fit installation onto existing blower housings or furnace cabinets.
- Enhanced HVAC Safety: Rapidly detects flue obstructions or inducer motor performance issues to prevent hazardous conditions.
- What does a -0.50" W.C. rating mean for this switch? It indicates the specific vacuum pressure required to actuate the internal diaphragm; if the inducer doesn't hit this threshold, the system won't fire.
- Can this switch be used to replace other Trane models? While it replaces specific part numbers like SWT03814 and CNT03814, you should always verify the pressure setpoint on your old switch to ensure compatibility.
- Why is the mounting bracket included? Proper orientation is vital; the bracket ensures the switch remains in the factory-spec vertical position to keep the internal diaphragm responsive.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
