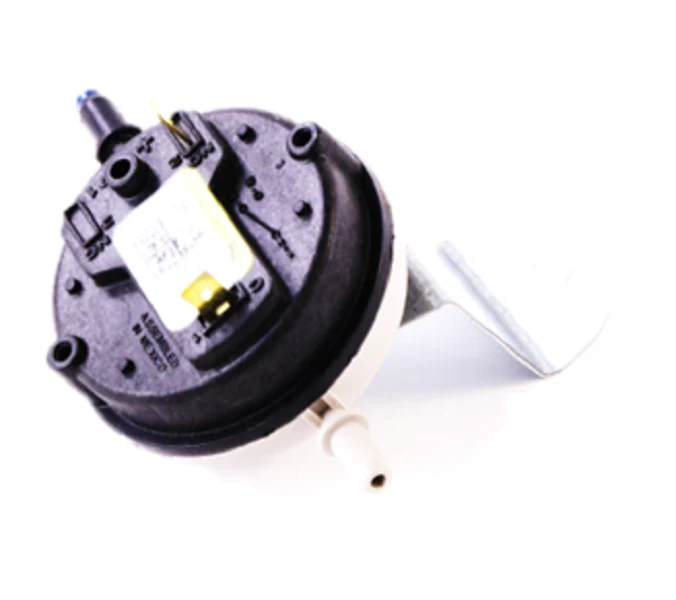

Trane SWT3245 Pressure switch
The Trane SWT3245 Pressure Switch is an essential OEM safety component designed for precise draft monitoring in high-efficiency furnaces and air handlers. Engineered with a .94" WC setpoint, this single-pole, single-throw (SPST) switch ensures the combustion blower or inducer motor is generating the specific negative pressure required for safe ignition. Built for professional-grade reliability, it features a 1/4" barb connection for a secure, leak-free interface with standard pneumatic tubing. As a direct replacement for Trane SWT03245, this component is critical for preventing hazardous conditions like back-drafting or incomplete combustion. With a robust 18A current rating and 277 VAC capacity, it handles high-cycle operational loads common in commercial and residential HVACR environments. Technicians should verify inducer motor performance and flue integrity when the control board registers a pressure switch lockout, as this part acts as the primary safety link between airflow verification and gas valve activation.
Key Benefits for Technicians
- OEM Precision: Calibrated specifically for a .94 inches water column threshold to maintain strict factory safety standards.
- Durable Construction: High-quality internal diaphragm designed to resist "flapping" and premature wear in harsh mechanical environments.
- Easy Retrofit: Standard 1/4" barbed fitting and quick-disconnect terminals allow for rapid field installation and reduced downtime.
- Universal Compatibility: Serves as a reliable cross-reference for various Trane and American Standard furnace models.
Common Questions
- What are the signs of a failing Trane SWT3245? Common symptoms include the inducer motor running without ignite sequence, "clicking" sounds near the switch, and diagnostic LED codes indicating an open limit or pressure fault.
- Can this switch be used for higher pressure ratings? No, this is a fixed .94" WC switch. Installing a switch with an incorrect setpoint can cause safety hazards or prevent the furnace from firing entirely.
- How do I test the SPST circuit? Using a multimeter set to continuity, check across the terminals while the system is under load. The circuit should close once the inducer reaches the .94" WC vacuum threshold.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
