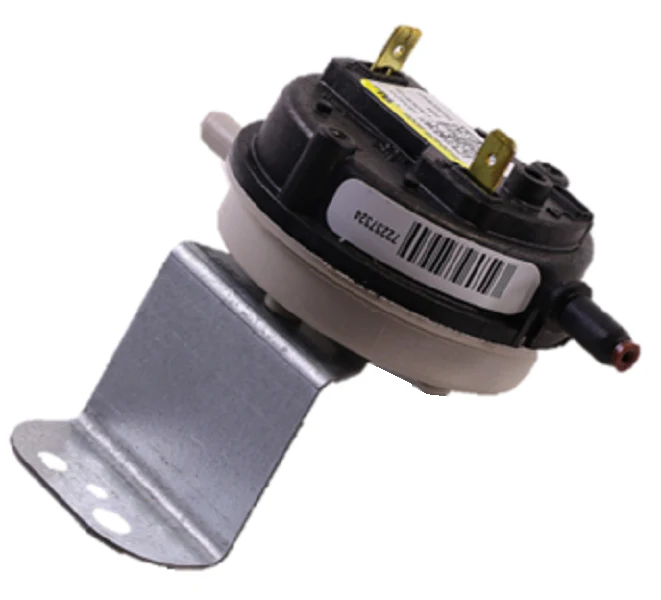

Trane SWT3221 Pressure switch
The Trane SWT3221 Pressure Switch is an essential safety component designed for precise furnace draft inducer motor monitoring. Calibrated to a 1.4" WC set point, this SPST pressure switch ensures the combustion blower is moving sufficient air to safely vent flue gases before allowing the ignition sequence to proceed. It features 1/4" barb connections for secure pneumatic tubing attachment and is built to withstand the high-temperature environment of modern condensing gas furnaces. For HVAC technicians, this part serves as a reliable replacement for OEM Trane and American Standard switches that have failed due to diaphragm fatigue or contact pitting, restoring proper system sequencing and preventing pressure switch open fault codes.
Technical Benefits
- Precise 1.4" WC Actuation: Ensures strict adherence to OEM furnace specifications for safe combustion cycles.
- Durable SPST Configuration: Simplifies troubleshooting and provides reliable electrical continuity under load.
- Standardized 1/4" Porting: Allows for quick integration with existing vacuum lines without requiring modifications.
- High-Heat Housing: Engineered to resist thermal degradation in tight inducer motor assemblies.
- Direct OEM Substitute: Eliminates compatibility issues common with universal "adjustable" switches that can drift out of calibration.
Common Technical Questions
How do I troubleshoot a Trane SWT3221 showing an open circuit?
First, verify the vent pipe is clear of obstructions and the inducer motor is reaching full RPM. Use a manometer to confirm the negative pressure at the 1/4" barb exceeds the 1.4" WC threshold. If the pressure is sufficient but the SPST contacts remain open, the internal diaphragm or switch mechanism has failed.
Can this switch be used in 80% and 95% AFUE furnaces?
Yes, provided the specific inducer draft requirements match the 1.4" water column rating. Always verify the part number on the original switch body, as incorrect set points can lead to nuisance tripping or unsafe operating conditions.
What causes these switches to fail prematurely?
The most common causes are moisture buildup in the vacuum tubing, cracked pneumatic ports, or soot accumulation within the collector box, all of which can interfere with the pressure signal reaching the switch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $103.78
-65%$103.78
$36.32Trane SWT3221 Pressure switch
