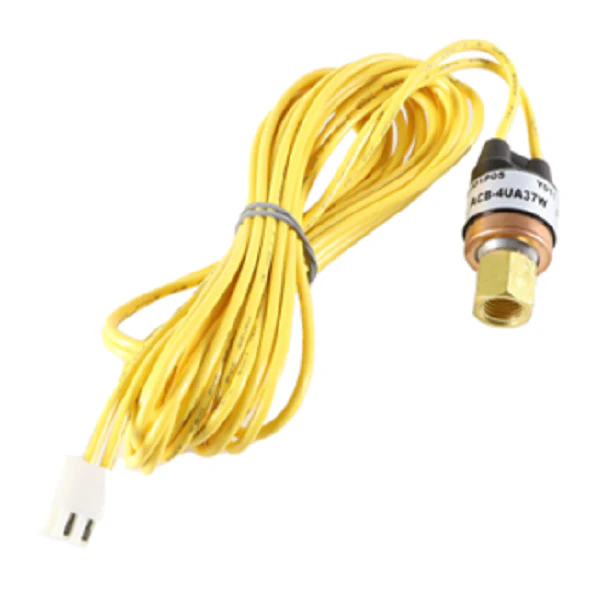

Trane SWT3207 Pressure Switch
The Trane SWT3207 Pressure Switch is an essential safety component engineered for precise monitoring in residential and commercial HVAC systems. This genuine OEM part functions as a low pressure switch (CO 25#), specifically calibrated to break the circuit at 25 psi to prevent the compressor from operating under hazardous low-refrigerant or low-ambient conditions. Built to Trane OEM specifications, the SWT3207 ensures that your equipment remains within safe thermodynamic limits, effectively preventing compressor burnout and system lockouts caused by suction line pressure drops.
For service technicians and contractors, the Trane SWT3207 offers a direct-fit replacement for various Trane and American Standard condensing units and heat pumps. Its NEMA 1 enclosure and durable internal contacts are designed for high-cycle reliability in demanding field environments. Whether you are troubleshooting a low pressure lockout error or performing routine maintenance on a split system cooling unit, using this OEM replacement pressure switch ensures accurate sensing and maintains the original engineering integrity of the refrigerant circuit.
Key Benefit List
- Precise 25 PSI Cutout: Factory-calibrated low pressure cutout at 25 psi ensures immediate shutoff during loss-of-charge events to protect the system's heart.
- OEM Compatibility: A genuine Trane SWT3207 replacement designed for seamless integration with R-410A and R-22 refrigeration circuits.
- Enhanced Safety Control: Minimizes the risk of compressor overheating and mechanical failure by regulating suction side pressure.
- Standard Electrical Interface: Rated for 24V HVAC control circuits, featuring lead-wire terminals for rapid field installation.
- Industrial Construction: Features a rugged NEMA 1 enclosure capable of withstanding industrial temperatures ranging from -22 to 185 degrees.
Common Questions
What causes a Trane low pressure switch to trip?
A trip is usually triggered by a low refrigerant charge, a clogged filter-drier, or restricted airflow over the evaporator coil (such as a frozen coil or dirty filter). If the Trane SWT3207 senses pressure below 25 psi, it will open the circuit to prevent damage.
Can I use a universal switch instead of the SWT3207?
While universal switches exist, using the genuine OEM Trane SWT3207 is recommended to ensure the cutout and reset setpoints align exactly with the manufacturer's performance curve and safety requirements.
How do I test if my SWT3207 is faulty?
Using a multimeter, you can check for electrical continuity across the terminals when the system is under proper pressure. If the switch remains open while suction pressure is well above 25 psi, the internal diaphragm or contacts may have failed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
