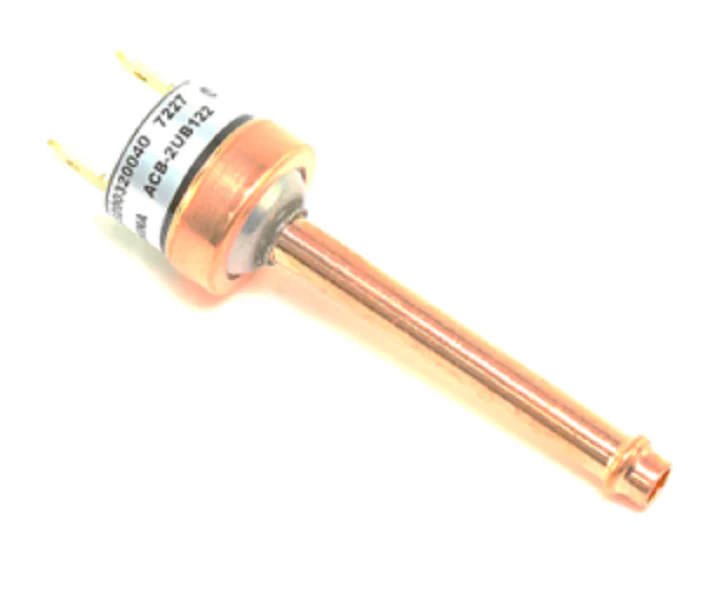

Trane SWT3172 Pressure Switch
The Trane SWT3172 High Pressure Switch is a critical safety component designed for professional-grade protection in residential and commercial HVAC systems. This OEM Trane pressure switch acts as a fail-safe, monitoring discharge line pressures to prevent catastrophic compressor failure. Engineered for high-pressure refrigerants like R-410A, this 800 PSI cutout switch automatically interrupts the 24V control circuit when system pressures exceed safe operating limits due to condenser fan failure, blocked coils, or refrigerant overcharge. This specific HVAC high pressure cutout features a 6-inch lead length and a compact footprint, making it a direct Trane SWT3172 replacement for various air handlers and condensing units. Known for its high-pressure safety shutdown responsiveness, this switch utilizes a Single Pole Single Throw (SPST) configuration, normally closed, to ensure your system only operates under hydraulically stable conditions. Integrating this genuine part ensures field-tested reliability and seamless refrigerant pressure monitoring without the risk of incompatible thread patterns or improper set points found in generic alternatives.
Key Benefits for Technicians:- Optimized System Safety: Provides a 800 PSI high pressure limit to protect the compressor from thermal overload and mechanical stress.
- Genuine OEM Precision: A direct Trane SWT3172 replacement ensures correct set points and thread accuracy, reducing time spent on troubleshooting.
- Durable Construction: Built to withstand the rapid cycling and harsh vibrations typical of high-tonnage HVAC applications.
- Plug-and-Play Integration: Includes standard 6-inch electrical leads for fast terminal connection during emergency service calls.
When should the Trane SWT3172 high pressure switch be replaced?
If you find the high pressure switch open even when system pressures are within normal range (as verified by manifold gauges), the internal bellows or contacts have likely failed. A diagnostic check with a multimeter should show continuity across the leads under normal static pressure.
Is the SWT3172 an auto-reset or manual-reset switch?
This model is typically an auto-reset high pressure switch, meaning it will close the circuit once the system pressure drops below the reset threshold (usually 100-200 PSI below the cutout point), though system controllers may require a manual power cycle to clear the lockout code.
Can I use this switch for R-22 systems?
While technically possible, this 800 PSI pressure switch is specifically calibrated for the higher operating pressures of R-410A. Always verify the specific cutout requirements of the equipment before installation to ensure the HVAC safety shutdown initiates at the manufacturer's specified limit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
