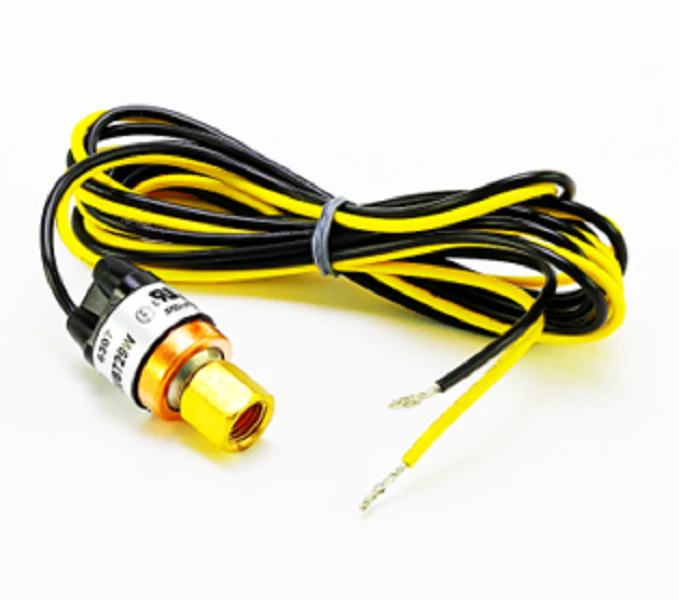

Trane SWT3083 Pressure Switch
The Trane SWT3083 Pressure Switch is a critical safety component designed for precise pressure monitoring in high-performance Trane HVAC equipment, including packaged units, RTUs, and heat pumps. As an OEM SPST pressure switch, this part ensures system integrity by maintaining a normally closed circuit that opens at 650 PSI and closes at 500 PSI. This snap-acting logic is vital for protecting the compressor from extreme head pressures, preventing catastrophic component failure during high-load cooling or heating cycles.
For service technicians, the SWT3083 high-pressure cut-out offers reliable field performance with its specific calibrated setpoints. In systems utilizing R-410A or similar high-pressure refrigerants, accurate pressure switch sensing is the difference between a minor service call and a full compressor replacement. This Trane replacement pressure switch (also identified as SWT03083) is engineered to withstand the vibration and thermal cycling inherent in commercial and residential condensing units, providing a direct-fit solution for troubleshooting HVAC pressure errors or "tripped" safety circuits.
- OEM Precision: Guaranteed compatibility with Trane heat pumps and air conditioners, eliminating the guesswork of universal alternatives.
- Critical Setpoints: Specifically calibrated to open at 650 PSI and close at 500 PSI for high-limit protection.
- SPST Configuration: Single Pole Single Throw design ensures a simple, reliable break in the low-voltage control circuit when limits are exceeded.
- Durable Construction: Built to handle high-cycle rates and harsh environmental conditions found in outdoor RTUs.
What causes a Trane high-pressure switch to trip?
High-pressure trips are typically caused by restricted airflow over the outdoor coil (such as dirt, debris, or a failed condenser fan motor), overcharged refrigerant, or non-condensables in the system. If the pressure exceeds 650 PSI, the SWT3083 will open the circuit to stop the compressor.
How do I test the SWT3083 for continuity?
With the system power off and pressures equalized below 500 PSI, a functioning Trane SWT3083 should show 0 ohms (continuity) across the terminals. If the circuit is open while the system pressure is within normal operating range, the switch is likely defective and requires replacement.
Can I use this switch for low-pressure applications?
No. This switch is calibrated for high-pressure cut-out (650 PSI). Using it for low-pressure protection or in R-22 systems with lower operating limits will result in improper safety coverage and potential equipment damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $175.34
-65%$175.34
$61.37Trane SWT3083 Pressure Switch
