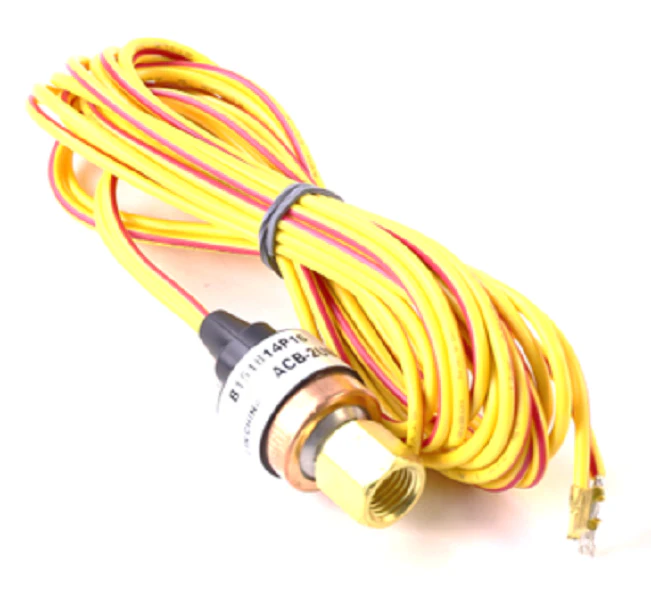

Trane SWT3026 Pressure Switch
The Trane SWT3026 Pressure Switch is a high-limit safety component designed for rigorous diagnostic and performance standards in residential and light commercial HVACR systems. As a SPST (Single Pole Single Throw) device, it provides essential overpressure protection by opening the circuit when system pressure reaches 650 PSI, preventing compressor damage and potential manifold failure. This OEM Trane high pressure switch is a direct replacement for SWT03026 and is frequently utilized in systems requiring high-threshold refrigerant monitoring.
For service technicians, this switch ensures precise refrigerant pressure control with a calibrated open at 650 PSI setpoint and a typical reset (close) at 500 PSI. Constructed with a 1/4" female flare fitting, the Trane SWT3026 facilitates a secure, leak-free connection to the liquid line or discharge service port. Its durable internal assembly is built to withstand high-cycle applications, offering the reliability needed to maintain system uptime in demanding environments.
Key Benefits:- OEM Compatibility: Precision-engineered for exact fit in Trane and American Standard units, ensuring proper electrical termination and mounting.
- High-Pressure Protection: Safely interrupts the contactor circuit at 650 PSI to prevent catastrophic system overpressurization.
- Simplified Installation: Standard SPST configuration and common wiring leads allow for rapid field replacement during emergency service calls.
- Industrial Durability: Rated for high-temperature and high-pressure R-410A environments where standard switches might fail.
- What is the reset pressure for the SWT3026? While the switch triggers the "open" safety state at 650 PSI, it typically closes the circuit again when pressure drops back to approximately 500 PSI.
- Can this be used for low-pressure applications? No, this is specifically a high-limit pressure switch. Using it for low-side monitoring will prevent the system from cycling correctly.
- Is this switch compatible with R-410A systems? Yes, its 650 PSI rating is specifically designed to handle the higher operating pressures associated with R-410A refrigerant.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
