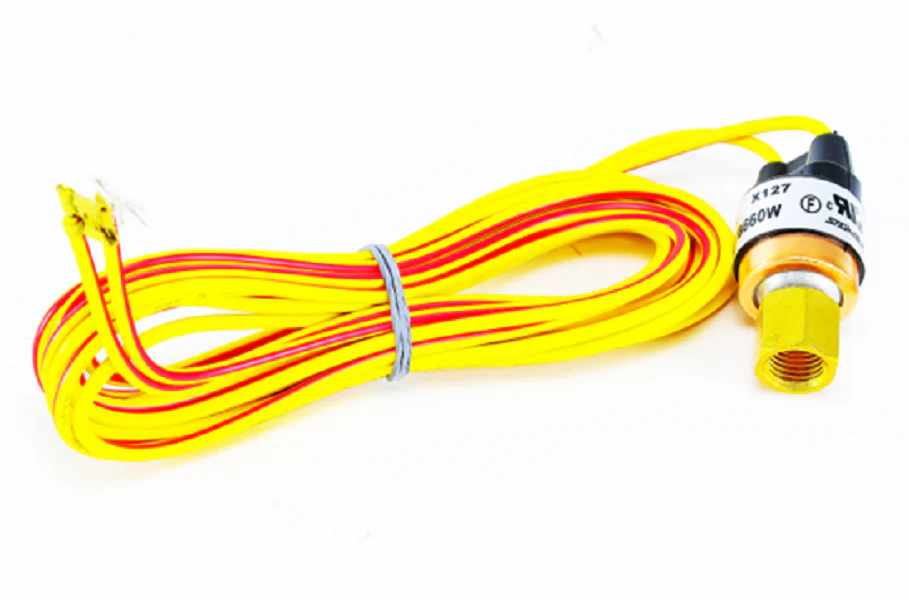

Trane SWT3025 Pressure Switch
The Trane SWT3025 Pressure Switch is an essential OEM safety component engineered for precision monitoring in high-pressure HVACR systems. As a high pressure cutout switch, it is designed with a specific 650 PSI open (650OP) limit and a 500 PSI close (500Cl) differential, ensuring the compressor is protected from critical over-pressure conditions. Built for durability in demanding environments, this SPST pressure switch features a stainless steel sensing disc and an IP65-rated enclosure for superior resistance to dust and moisture common in industrial and commercial condenser units. This direct-mount control is a standard Trane HVAC replacement part for various air handlers and heat pumps, maintaining system integrity by interrupting the electrical circuit when internal pressures exceed safe operating thresholds. Integrating a commercial HVAC pressure switch like the SWT3025 ensures reliable refrigerant pressure monitoring and long-term equipment protection without the performance drift often seen in universal alternatives.
Key Benefits:- Precise Pressure Calibrations: Factory-set 650 PSI cutout and 500 PSI cut-in points eliminate the need for field adjustments and ensure accurate system safety.
- Rugged Environmental Protection: The IP65 enclosure and stainless steel internal components prevent corrosion and failure in high-humidity or outdoor environments.
- Direct OEM Compatibility: Engineered as a genuine replacement for Trane SWT03025 and Trane 389694, ensuring seamless physical and electrical integration.
- High Electrical Duty: Rated for 250 VAC at up to 8 Amps, making it suitable for a wide range of residential and light commercial control circuits.
- Critical System Safeguard: Prevents catastrophic compressor damage by providing a fast-acting high pressure safety limit response.
What are the cut-out and cut-in settings for this switch?
The Trane SWT3025 is calibrated to open the circuit at 650 PSI (High Pressure Cutout) and automatically reset/close at 500 PSI (Cut-in).
Is this switch compatible with 410A refrigerant systems?
Yes, the 650 PSI open rating is specifically designed to handle the higher operating pressures associated with R-410A systems, where a high pressure limit switch is required for safety.
What type of electrical connection does this part use?
This model typically features lead wire terminals for secure integration into the existing wiring harness of your Trane or American Standard unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
