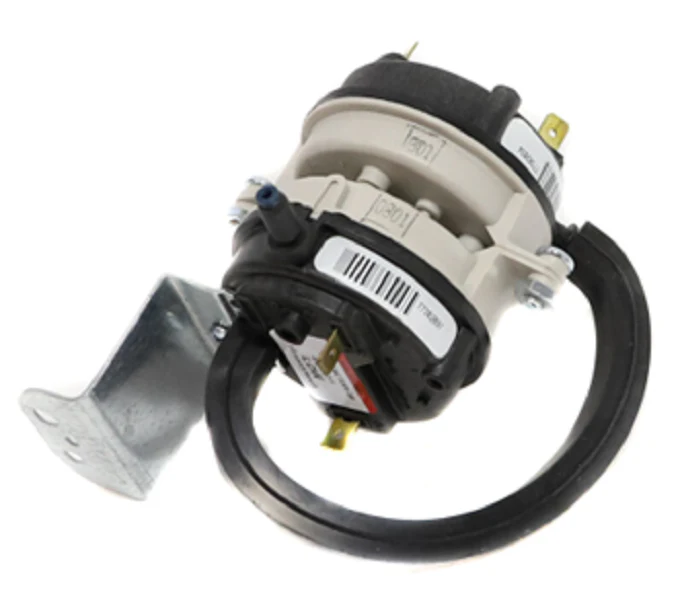

Trane SWT2978 Pressure Switch
The Trane SWT2978 is a heavy-duty dual pressure switch engineered for precision safety monitoring within residential and commercial HVAC units. This OEM replacement part is built to monitor critical pressure thresholds, providing a vital safeguard for the compressor and combustion blower. Operating on a 24V AC power supply with an 18A current rating and 28VA pilot duty, it ensures reliable electrical signaling to prevent system strain during high or low-pressure events. For technicians, this unit replaces legacy part numbers SWT02978 and C342634P61, maintaining a standardized 1.57" WC high side close and 1.31" WC open specification for optimal performance in furnace and heat pump applications.
Key Benefits- Enhanced System Protection: Actively monitors two distinct pressure points to prevent compressor damage from refrigerant issues or restricted airflow.
- Wide Compatibility: Designed as a direct fit for numerous Trane and American Standard furnace models, including ADHMB, TUHMB, and TUX series.
- Durable Technical Construction: Features robust 1/4" quick-connect terminals for a secure electrical connection in high-vibration environments.
- Operational Efficiency: Eliminates system downtime by ensuring the combustion air inducer maintains proper static pressure before ignition.
How do I troubleshoot a pressure switch error on my furnace?
Start by checking for obstructions in the venting pipes, such as debris or ice. Inspect the pressure switch hoses for cracks or moisture. Use a multimeter to test for continuity across the SWT2978 terminals when the inducer motor is running; a reading of zero ohms indicates the switch is closing correctly.
What causes a dual pressure switch to trip?
Frequent tripping is often caused by a dirty air filter restricting airflow, a failing inducer motor, or leaks in the refrigerant circuit. If the pressure falls outside the set 1.31" WC to 1.57" WC parameters, the switch will open the circuit to protect the system.
Is the SWT2978 a direct replacement for the SWT02978?
Yes, the Trane SWT2978 is the current manufacturer-designated replacement for the SWT02978. It maintains identical electrical ratings and pressure setpoints as the original industrial component.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $110.79
-65%$110.79
$38.78Trane SWT2978 Pressure Switch
The Trane SWT2978 is a heavy-duty dual pressure switch engineered for precision safety monitoring within residential and commercial HVAC units. This OEM replacement part is built to monitor critical pressure thresholds, providing a vital safeguard for the compressor and combustion blower. Operating on a 24V AC power supply with an 18A current rating and 28VA pilot duty, it ensures reliable electrical signaling to prevent system strain during high or low-pressure events. For technicians, this unit replaces legacy part numbers SWT02978 and C342634P61, maintaining a standardized 1.57" WC high side close and 1.31" WC open specification for optimal performance in furnace and heat pump applications.
Key Benefits- Enhanced System Protection: Actively monitors two distinct pressure points to prevent compressor damage from refrigerant issues or restricted airflow.
- Wide Compatibility: Designed as a direct fit for numerous Trane and American Standard furnace models, including ADHMB, TUHMB, and TUX series.
- Durable Technical Construction: Features robust 1/4" quick-connect terminals for a secure electrical connection in high-vibration environments.
- Operational Efficiency: Eliminates system downtime by ensuring the combustion air inducer maintains proper static pressure before ignition.
How do I troubleshoot a pressure switch error on my furnace?
Start by checking for obstructions in the venting pipes, such as debris or ice. Inspect the pressure switch hoses for cracks or moisture. Use a multimeter to test for continuity across the SWT2978 terminals when the inducer motor is running; a reading of zero ohms indicates the switch is closing correctly.
What causes a dual pressure switch to trip?
Frequent tripping is often caused by a dirty air filter restricting airflow, a failing inducer motor, or leaks in the refrigerant circuit. If the pressure falls outside the set 1.31" WC to 1.57" WC parameters, the switch will open the circuit to protect the system.
Is the SWT2978 a direct replacement for the SWT02978?
Yes, the Trane SWT2978 is the current manufacturer-designated replacement for the SWT02978. It maintains identical electrical ratings and pressure setpoints as the original industrial component.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
