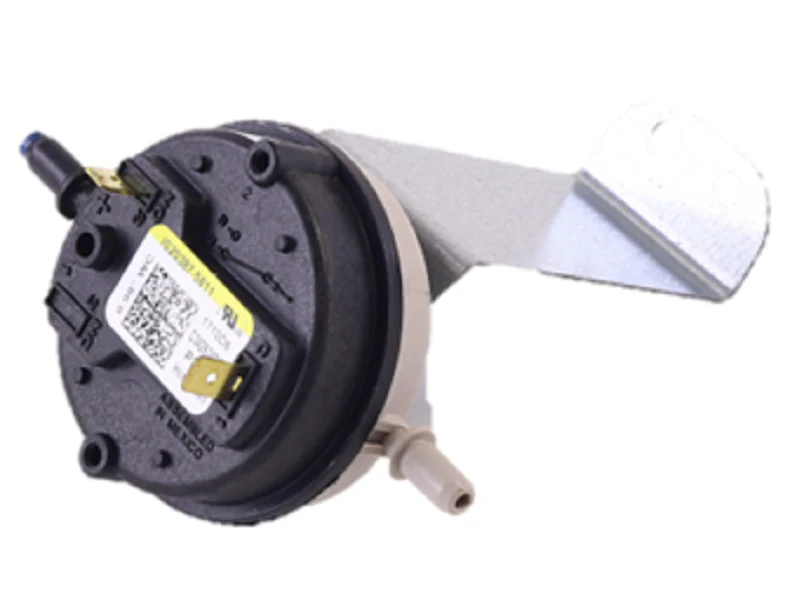

Trane SWT2976 Pressure switch
The Trane SWT2976 Pressure Switch is a critical safety component found in residential and light commercial Trane and American Standard gas furnaces. As a Single-Pole Single-Throw (SPST) pressure sensor with a factory-calibrated setpoint of .98" WC, it is engineered to verify that the inducer blower motor is generating sufficient static pressure to vent combustion gases safely. If the inducer fan fails to move enough air or a blockage is detected in the flue vent, this normally open switch will not close, preventing the ignition sequence and protecting the heat exchanger from unsafe operating conditions.
Built for high-cycle reliability, the SWT2976 features a 1/4" barb connection for secure, leak-free seating of the standard silicone vacuum tubing. Technicians should verify continuity with a multimeter when the system is under load to diagnose pressure switch open errors often indicated by a 3-flash LED code on the control board. This OEM replacement part ensures the exact response curve required for condensing and non-condensing furnaces, maintaining the tight tolerances necessary to satisfy modern AEO and SEER performance standards.
Key Benefits:- Precise 0.98" WC Calibration: Ensures the system only ignites when the draft inducer provides verified, safe airflow for combustion.
- SPST Logic: Simplified normally open circuit designed for seamless integration with 24V furnace control systems.
- 1/4" Barb Interface: Provides a durable mechanical connection that withstands vibration and thermal expansion without vacuum loss.
- Direct OEM Fit: Eliminates the need for field modifications, ensuring compatibility with specific Trane/American Standard furnace models.
- What causes a "Pressure Switch Stuck Open" error on Trane furnaces? Usually, this is caused by a blocked flue pipe, a failed inducer motor, or moisture buildup in the vacuum hose. If the hose is clear and the motor is spinning at full RPM, the SWT2976 may have a ruptured internal diaphragm.
- How do I test the Trane SWT2976 using a manometer? Connect a digital manometer in-line with the 1/4" barb to confirm if the inducer is pulling at least 0.98" WC. If the pressure is sufficient but the SPST contacts do not show 0 ohms, the switch is defective.
- Can I use a universal pressure switch as a substitute? Using a part with a different WC setpoint can lead to nuisance shutdowns or dangerous delayed ignition. Always use the SWT2976 when the furnace's original data plate specifies a .98" WC rating.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $53.80
-65%$53.80
$18.83Trane SWT2976 Pressure switch
