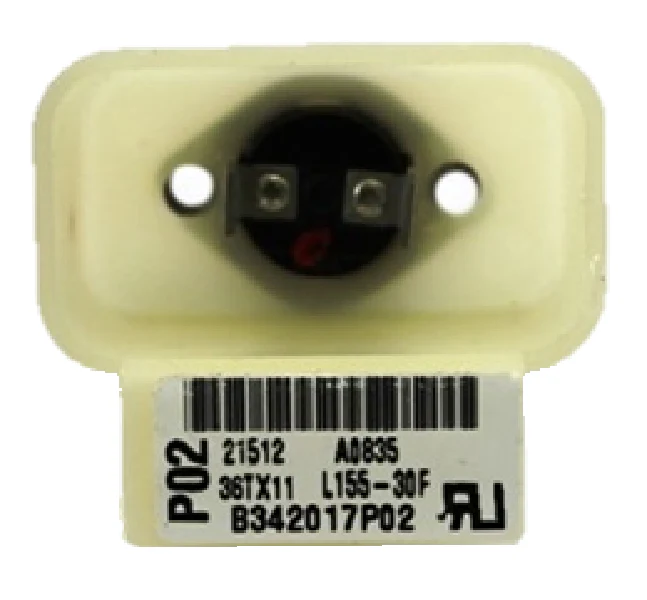

Trane SWT2686 Limit Switch
When you are looking for a reliable Trane SWT2686 Limit Switch replacement, ensuring the correct thermal calibration is critical for system safety and furnace uptime. This OEM Trane heating part is a 125-155F AUTO limit switch, specifically engineered to act as a primary safety control by monitoring discharge air or internal plenum temperatures. It features a precise 125-degree opening temperature and resets automatically at 155 degrees, preventing the unit from cycling on a high-limit trip without proper thermal stabilization.
Designed with durable SPST contacts and a standard 15A 120/240VAC electrical rating, the SWT2686 temperature sensor handles the inductive loads of modern igniters and control boards without premature contact pitting. This furnace high limit switch is often found in residential gas furnaces and packaged units where a surface mount limit switch is required for rapid thermal response. Whether you are replacing a faulty L125-30 limit control or performing preventative maintenance on a Trane/American Standard blower assembly, this component ensures the burner circuit opens fast if airflow is restricted by a clogged filter or failing blower motor.
Key Benefits for Technicians:- OEM Precision: Genuine Trane furnace part ensures exact mounting footprints and terminal alignments, saving time on the job site.
- Automatic Reset: The 125-155 degree range allows for "AUTO" reset logic, reducing nuisance service calls after temporary overheat events.
- Robust Electrical Rating: Rated for 15 Amps, providing heavy-duty switching performance for secondary safety loops and HVAC control circuits.
- Wide Compatibility: Direct replacement for SWT2686 and compatible with numerous American Standard and Trane residential heating models.
- What does a 125-155F rating mean for this switch? It indicates the switch is normally closed and will open the circuit at 155°F to stop the heat source, then automatically re-close once the temperature drops back to 125°F.
- Can I use this as a rollout switch? No, this is an auto-reset limit switch meant for general temperature monitoring; rollout switches usually require a manual reset for safety after a flame rollout event.
- How do I check if my SWT2686 is bad? Use a multimeter to check for continuity across the terminals. If the switch is open at room temperature, the internal bimetal disc has failed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
