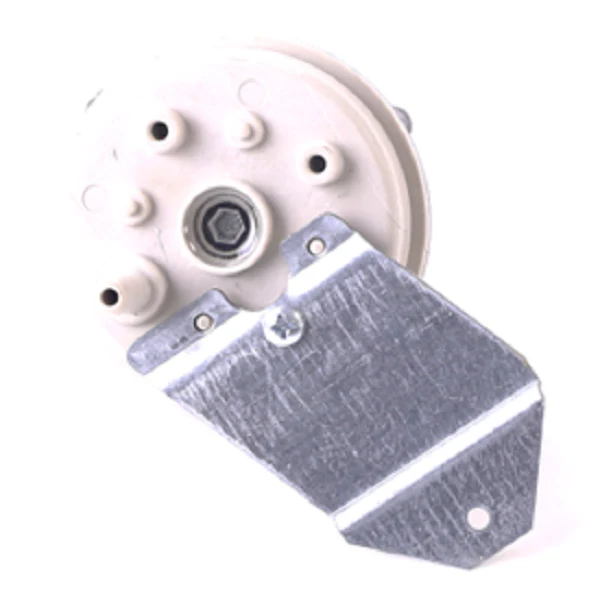

Trane SWT2512 Pressure Switch
For technicians servicing Trane-specific systems, the Trane SWT2512 Pressure Switch is the direct OEM replacement for safety circuits requiring a 1.04" WC set point. Designed as a Single Pole Single Throw (SPST) component, this switch is a critical safeguard in the firing sequence, ensuring the draft inducer motor is moving sufficient combustion air before the ignitor is energized. With its 1/4" barb connection, it integrates seamlessly with existing rubber tubing, providing a precise, airtight seal to maintain system calibration. Rated for 15 amps, the SWT2512 provides heavy-duty electrical switching to signal the control board during pressure fluctuations. Whether you are addressing a furnace that won't ignite or a system throwing pressure switch codes, this 1.04" WC pressure switch offers the exact specifications needed to restore the furnace pressure monitoring system to factory standards without the risks associated with adjustable universal replacements.
Key Benefits- Precise 1.04" WC Set Point: Calibrated specifically for Trane draft inducer sequences to ensure safe combustion airflow.
- OEM Compatibility: Replaces Trane SWT2512 and related part numbers to guarantee fit and electrical alignment.
- Durable SPST Mechanism: High-current 15-amp rating ensures reliable signaling to the HVAC control board.
- Secure 1/4" Barb Ports: Designed for standard furnace tubing to prevent vacuum leaks and nuisance tripping.
- How do I test the Trane SWT2512 for a bad diaphragm? Using a multimeter set to continuity, check the resistance across the terminals while the inducer is running. If you have no continuity despite the inducer reaching speed, check the 1/4" barb for debris before concluding the diaphragm has failed.
- Can I use a universal switch instead of this 1.04" WC model? It is not recommended. Trane systems are engineered for specific static pressure thresholds. Using a switch with an incorrect water column rating can lead to incomplete combustion or frequent safety lockouts.
- What causes a pressure switch error if the switch is good? Blocked vent pipes, a clogged flue, or a deteriorating inducer motor housing are common culprits that prevent the system from hitting the 1.04" WC required to close the circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
