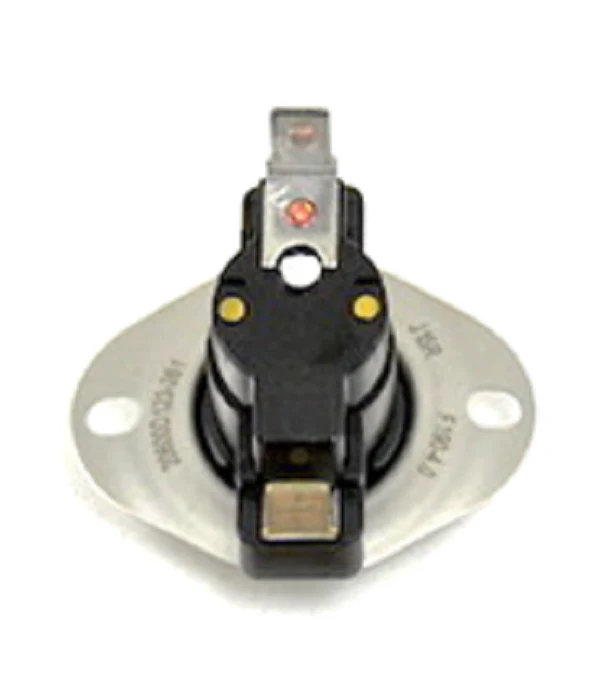

Trane SWT1744 Limit
The Trane SWT1744 High Limit Switch is a critical safety component designed for industrial HVAC systems and heavy-duty gas furnace applications. This OEM replacement part serves as a thermal safeguard, featuring a fixed 190°F temperature limit to prevent equipment overheating and potential heat exchanger damage. Unlike standard limit discs, the SWT1744 includes an integrated fan time delay mechanism, ensuring the blower motor continues to circulate air after the heating cycle to dissipate residual heat effectively. This high-limit safety switch features a durable 3-prong terminal configuration for secure electrical integration into the control circuit.
When troubleshooting a system where the furnace is short-cycling or the blower fails to shut off, the Trane SWT1744 Limit is a primary point of inspection. Its robust construction is engineered to withstand the rigorous thermal cycles found in commercial rooftops and high-efficiency residential units. Utilizing a genuine Trane HVAC limit control ensures that the precise 190-degree Fahrenheit opening point is maintained, protecting the compressor and internal components from thermal stress. This compact switch facilitates straightforward installation in tight vestibule panels, making it a reliable furnace high limit switch for field technicians.
Key Benefits:- Precise Thermal Protection: Acts as a safety limit switch by opening the circuit at a 190°F threshold to prevent overheating.
- Integrated Fan Timing: Features a built-in fan time delay to manage blower operation for optimal heat dissipation.
- OEM Reliability: Genuine Trane SWT1744 replacement ensures exact calibration and direct compatibility with Trane HVAC equipment.
- Durable 3-Prong Design: Provides a secure, professional-grade electrical connection for industrial and residential duty.
- How do I know if my Trane SWT1744 is bad? If your system is experiencing limit switch tripping or the indoor fan runs indefinitely, the internal contacts or fan time delay circuit may have failed. Use a multimeter to check for continuity across the terminals.
- Can this part be used in downflow furnace applications? Yes, this high limit thermostat is often utilized in configurations requiring specific thermal monitoring to avoid nuisance trips in vertical airflow setups.
- What does the fan time delay do? It keeps the blower running for a specific interval after the burner shuts down, preventing the heat exchanger from "soaking" in high temperatures.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $133.15
-65%$133.15
$46.60Trane SWT1744 Limit
