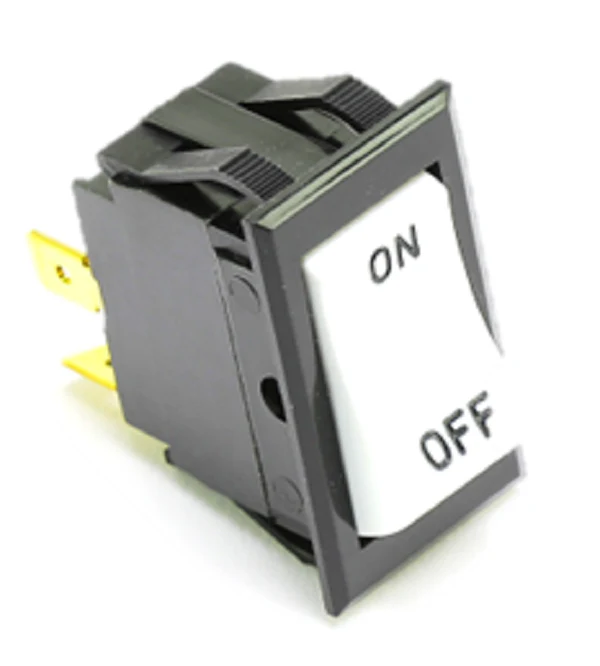

Trane SWT1615 Rocker Switch
The Trane SWT1615 Rocker Switch is a heavy-duty DPST (Double Pole Single Throw) control component designed for reliable HVAC circuit switching in demanding commercial and industrial environments. This On/Off rocker switch serves as a direct replacement for various Trane and American Standard air handling units and packaged systems where a 4-terminal configuration is required to break both legs of a circuit. Engineered to handle high-amperage startup loads, the SWT1615 ensures a positive tactile response and durable electrical contact points to prevent arcing and premature failure. Its snap-in housing design facilitates efficient field installation into standard rectangular panel cutouts, making it a critical HVAC replacement part for maintaining system uptime. Whether you are troubleshooting an industrial switch failure or performing routine panel maintenance, this dual pole rocker switch provides the robust performance and OEM compatibility necessary for professional-grade HVACR repairs.
Key Benefits- DPST Configuration: Allows for simultaneous switching of two independent circuits, providing complete electrical isolation in the "Off" position.
- OEM Precision: Guaranteed fit and function for specific Trane HVAC equipment models, eliminating the risks associated with generic universal switches.
- High Cycle Life: Constructed with industrial-grade plastic and reinforced metal contacts to withstand thousands of switching cycles under load.
- Efficient Installation: Features a standard snap-in mount and 1/4-inch quick-connect terminals for rapid lead attachment.
Is the SWT1615 compatible with 240V circuits?
Yes, this Trane rocker switch is rated for both 120V and 240V applications, provided the amperage draw does not exceed the component's maximum rating.
What indicates a failing rocker switch in an AHU?
Common symptoms include intermittent power to the blower, visible signs of melting at the terminal connections, or a lack of continuity across the poles when the switch is engaged.
Does this switch replace a SPST model?
While a Double Pole Single Throw switch can theoretically replace a Single Pole model by using only one set of terminals, it is best practice to match the original wiring configuration for safety and code compliance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
