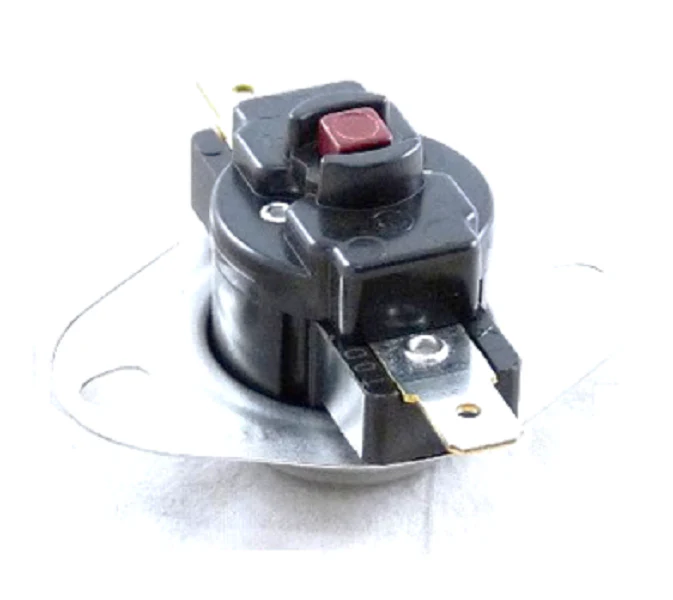

Trane SWT1432 Vent Switch
The Trane SWT1432 Vent Switch is a critical safety component engineered for residential and light commercial furnaces with 1 to 4 MBH heating capacity. Designed to monitor flue safety, this blocked vent switch is calibrated to open at 240°F, immediately interrupting the 240 VAC, 25A circuit if venting temperatures exceed safe thresholds due to airflow restrictions. This OEM furnace safety switch identifies potential flue obstructions or downdrafts that could lead to dangerous heat accumulation, helping to protect both the heat exchanger and the overall system integrity.
Featuring a 3.4-inch length and a two-wire electrical connector, the SWT1432—also identified as SWT01432—is an exact-fit replacement part for Trane and American Standard units. The red dot indicator allows for quick visual identification during routine service calls. As a manual reset limit switch, it requires professional inspection of the venting system once tripped, ensuring airflow issues are resolved before the furnace can be put back into operation. Professional-grade HVAC part replacement with genuine OEM components ensures maintaining factory safety specifications for the life of the equipment.
Key Benefits- Precise 240F Thermal Protection: Acts as a failsafe, opening the electrical circuit at 240 degrees Fahrenheit to prevent equipment damage from blocked vents.
- High Electrical Rating: Optimized for 240-volt systems with a current capacity of 25 Amps, providing stability in heavy-load 1-4 million BTU units.
- True OEM Fitment: Cross-compatible with the latest Trane SWT01432 part number, streamlining installation for contractors by eliminating mounting modifications.
- Durable Construction: Engineered to withstand harsh flue environments and thermal cycling common in industrial and residential heating applications.
What causes a blocked vent switch to trip?
A trip is typically caused by physical obstructions in the flue (like debris or bird nests), a failing blower motor, or undersized ducting that prevents heat from escaping, causing temperatures at the switch to hit 240°F.
Is the Trane SWT1432 a manual or automatic reset?
This model is a manual reset vent switch. Because it is a primary safety device, it requires a technician to manually reset the part and verify the venting system is clear of blockages before the system can restart.
How do I identify a faulty SWT1432?
If the furnace fails to start and the switch is in the open position while cold, check for continuity across the two-wire terminals. Lack of continuity indicates the switch needs to be replaced with a genuine Trane OEM part.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
