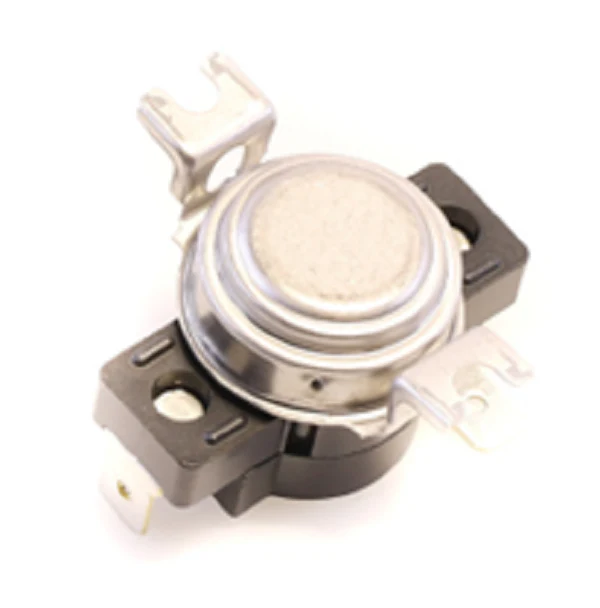

Trane SWT1036 Limit Swtich
The Trane SWT1036 is a mission-critical high-limit safety control designed for residential and light commercial furnaces. This OEM Trane limit switch features an auto-reset mechanism, operating within a precise 130-170F temperature range to prevent heat exchanger damage or unsafe operating conditions. When internal plenum temperatures reach the 170°F threshold, the circuit opens to interrupt the gas valve or heating element, and it automatically closes once the system cools to 130°F.
For service technicians and contractors, the SWT1036 (often interchanged with SWT01036) offers a compact surface-mount footprint that ensures a drop-in furnace limit switch replacement for compatible Trane and American Standard air handlers and furnaces. Utilizing a genuine HVAC high-limit switch is essential for maintaining the original equipment manufacturer's airflow and safety certifications. This automatic limit control is engineered for high-cycle reliability in 208-230/460V applications, providing the robust thermal protection required in modern high-efficiency HVAC systems.
Key Benefits:- Precise Thermal Calibration: Fixed 130°F Close / 170°F Open settings ensure accurate high-limit protection without drift.
- Automatic Reset Logic: Eliminates the need for manual intervention after temporary temperature spikes, reducing unnecessary service calls.
- Universal Compatibility: Specified for a wide array of Trane and American Standard furnace models to ensure a proper fit.
- Rugged Construction: Built for high-voltage industrial and commercial thermal monitoring applications.
- Safety Integrity: Acts as the primary fail-safe to prevent plenum overheating and potential fire hazards.
- How do I know if my Trane limit switch is bad? If your furnace blower runs constantly but the burners won't ignite, or the system short-cycles, the SWT1036 may be stuck in the open position. Continuity testing across the terminals is required for diagnosis.
- Is the SWT1036 compatible with American Standard? Yes, as a genuine OEM part manufactured by Trane, this limit switch is the direct replacement for most American Standard furnaces using this specification.
- Can I use a higher temperature limit switch instead? No. You must match the 130-170F rating exactly. Installing a switch with a higher limit can lead to heat exchanger failure or unsafe cabinet temperatures.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $77.59
-65%$77.59
$27.16Trane SWT1036 Limit Swtich
