Trane SWT0417 Switch

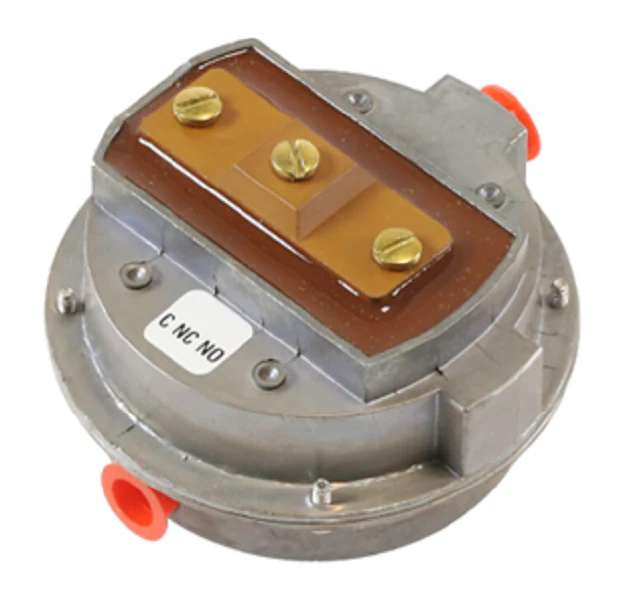

The Trane SWT0417 is a critical industrial-grade differential pressure switch engineered for precise monitoring in high-demand HVAC and air handling systems. As an essential safety and operational component, this 0.15/4.25" differential pressure switch ensures system integrity by detecting the specific pressure drop across filters, coils, or fan stages. Operating within a temperature range of -40 to 150°F, this Trane OEM replacement part provides reliable HVAC pressure monitoring in extreme environments. The SPDT (Single Pole Double Throw) configuration allows for versatile integration into a 24V furnace control circuit or a high-voltage 250VAC system, handling current loads up to 10 Amps. Designed as a direct drop-in replacement, this factory-calibrated Trane air pressure switch prevents burner ignition failure and induces safe shutdowns if improper exhaust flow or negative pressure is detected. This differential control unit is the technician's choice for restoring original equipment performance and ensuring HVAC safety switch compliance in commercial air handler configurations.
Key Benefits for Technicians:- Factory Calibrated Precision: Features a setpoint range of .15 to 4.25 inches Water Column (WC) for exact air proving and differential detection.
- Broad Electrical Compatibility: Reliable performance across 125/250 VAC applications with a robust 10/8 Amp rating for high-load switching.
- OEM Direct Fit: Eliminates field-modification issues with exact lead terminal connections and Trane SWT00417 dimensions.
- Rugged Environmental Rating: Built to withstand commercial HVAC conditions with an operating range of -40 to 150 degrees Fahrenheit.
- System Protection: Critical for detecting clogged air filters, restricted flue vents, or inducer motor failure to prevent ignition errors.
How do I verify if the Trane SWT0417 is malfunctioning?
Technicians should check for continuity across the terminals when the system is calling for heat. If the inducer is running but the switch remains open, use a manometer to verify if the pressure meets the 0.15" WC threshold. If the pressure is sufficient but the circuit does not close, the internal diaphragm or contacts may have failed.
What causes a differential pressure switch to trip frequently?
Frequent trips or "pressure switch error" codes are often caused by blocked vent pipes, cracked pressure hoses, or a failing draft inducer motor that cannot maintain the required static pressure. Always inspect the intake and exhaust lines for debris or ice before replacing the unit.
Can I use this switch in a low-voltage control circuit?
Yes, the Trane SWT0417 is rated for 24V control circuits used in most residential and commercial furnaces, while also supporting higher voltage industrial air handling units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $331.58
-65%$331.58
$116.05Trane SWT0417 Switch
The Trane SWT0417 is a critical industrial-grade differential pressure switch engineered for precise monitoring in high-demand HVAC and air handling systems. As an essential safety and operational component, this 0.15/4.25" differential pressure switch ensures system integrity by detecting the specific pressure drop across filters, coils, or fan stages. Operating within a temperature range of -40 to 150°F, this Trane OEM replacement part provides reliable HVAC pressure monitoring in extreme environments. The SPDT (Single Pole Double Throw) configuration allows for versatile integration into a 24V furnace control circuit or a high-voltage 250VAC system, handling current loads up to 10 Amps. Designed as a direct drop-in replacement, this factory-calibrated Trane air pressure switch prevents burner ignition failure and induces safe shutdowns if improper exhaust flow or negative pressure is detected. This differential control unit is the technician's choice for restoring original equipment performance and ensuring HVAC safety switch compliance in commercial air handler configurations.
Key Benefits for Technicians:- Factory Calibrated Precision: Features a setpoint range of .15 to 4.25 inches Water Column (WC) for exact air proving and differential detection.
- Broad Electrical Compatibility: Reliable performance across 125/250 VAC applications with a robust 10/8 Amp rating for high-load switching.
- OEM Direct Fit: Eliminates field-modification issues with exact lead terminal connections and Trane SWT00417 dimensions.
- Rugged Environmental Rating: Built to withstand commercial HVAC conditions with an operating range of -40 to 150 degrees Fahrenheit.
- System Protection: Critical for detecting clogged air filters, restricted flue vents, or inducer motor failure to prevent ignition errors.
How do I verify if the Trane SWT0417 is malfunctioning?
Technicians should check for continuity across the terminals when the system is calling for heat. If the inducer is running but the switch remains open, use a manometer to verify if the pressure meets the 0.15" WC threshold. If the pressure is sufficient but the circuit does not close, the internal diaphragm or contacts may have failed.
What causes a differential pressure switch to trip frequently?
Frequent trips or "pressure switch error" codes are often caused by blocked vent pipes, cracked pressure hoses, or a failing draft inducer motor that cannot maintain the required static pressure. Always inspect the intake and exhaust lines for debris or ice before replacing the unit.
Can I use this switch in a low-voltage control circuit?
Yes, the Trane SWT0417 is rated for 24V control circuits used in most residential and commercial furnaces, while also supporting higher voltage industrial air handling units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
