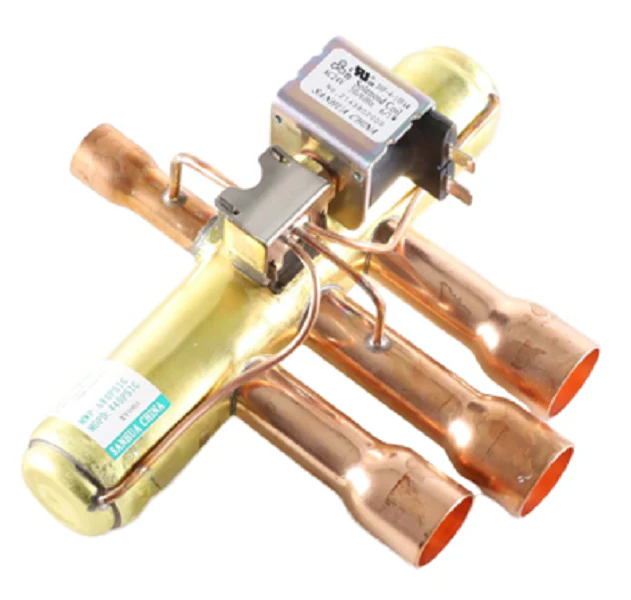

Trane SHF-H295720751-RK Reversing Valve
The Trane SHF-H295720751-RK Reversing Valve is a critical 4-way pilot-operated component engineered for high-capacity heat pump systems requiring a 6 Ton refrigeration capacity. Designed with a robust 24V solenoid operation, this valve facilitates seamless refrigerant flow reversal between heating and cooling modes by shifting the internal slide mechanism. In commercial and industrial HVACR applications, maintaining precise temperature control depends on the valve's ability to switch directions without internal bypassing or pressure drops. The SHF series reversing valve is built to withstand high-pressure environments, often rated up to 650 psig, ensuring reliable performance in systems utilizing R-410A or R-22. For technicians, the Trane heat pump reversing valve provides a direct OEM fit, simplifying complex replacements in the field. When diagnosing system failures where the unit is stuck in one mode or demonstrating inefficient heat transfer, verifying the 24v reversing valve coil and its ability to actuate the pilot valve is the standard first step before a complete valve swap.
Key Benefits
- High Capacity Performance: Optimized for 6 Ton systems, ensuring adequate mass flow rates without excessive pressure drops.
- Reliable 24V Actuation: The Trane SHF-H295720751-RK utilizes standard low-voltage control signals for easy integration with existing HVAC control systems.
- Industrial Durability: Engineered for long-term service in demanding environments, specifically designed to handle rapid cycling and environmental temperature variations.
- Precise Changeover: Tight internal tolerances minimize refrigerant leakage during the transition between heating and cooling stages, maintaining total system EER.
Common Questions
- What are the symptoms of a failing Trane reversing valve? Common indicators include the system being stuck in one mode, hissing noises from the outdoor unit indicating internal bypassing, or a significant temperature differential across the suction and discharge ports.
- How do I verify if the solenoid or the valve body is the issue? Measure for 24V at the solenoid leads during a call for mode change; if voltage is present but the valve doesn't shift, the internal slide or the pilot tubes may be restricted or damaged.
- Can this internal slide be repaired in the field? No, while the coil is replaceable, internal failures of the 6 Ton reversing valve body require a complete replacement, including refrigerant recovery and brazing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
