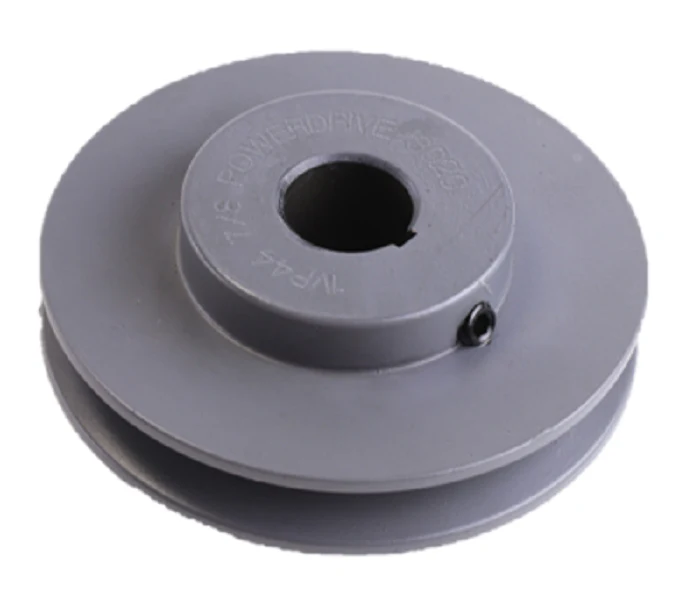

Trane SHE5385 Sheave
As a veteran tech, you know that keeping airflow within design specs requires precise control over blower RPM. The Trane SHE5385 Sheave is a 1VP44 adjustable pitch sheave designed specifically for commercial and industrial air handlers where system balancing is non-negotiable. Featuring a .875-inch finished bore with a standard keyway, this single-groove component allows for fine-tuned speed adjustments by rotating the movable flange to modify the belt’s pitch diameter. This is critical for matching the motor’s output to the static pressure requirements of the ductwork without needing a full pulley swap.
Constructed from high-grade cast iron for long-term durability against belt wear, this HVAC blower pulley is compatible with 3L, 4L, 5L, A, and B section V-belts. In belt-driven HVAC units, the SHE5385 (also identified as SHE05385) ensures reliable power transmission from the motor shaft to the blower wheel. Whether you are performing a routine blower motor pulley replacement or addressing a commissioning issue where airflow adjustment is required, this genuine OEM part maintains the exact tolerances needed to prevent premature v-belt wear and excessive vibration in Trane TCD and analogous rooftop units.
Key Benefits
- Precise Speed Control: The 1VP44 design allows for instant blower RPM adjustment to meet specific air balance requirements.
- Universal Belt Compatibility: Engineered to seat 3L, 4L (A), and 5L (B) cross-sections, providing versatility for various commercial HVAC maintenance tasks.
- Rugged Construction: Cast iron material resists the grooving and "polishing" that often occurs with lower-quality aftermarket sheaves.
- OEM Fitment: Direct replacement for Trane SHE5385 and Trane SHE05385, ensuring the .875 bore and keyway line up perfectly on the first try.
- Vibration Reduction: Machined to high tolerances to ensure smooth rotation and reduced harmonic stress on motor bearings.
Common Questions
How do I adjust the airflow using this sheave?
To increase fan speed, loosen the 5/16-18 setscrew and turn the adjustable flange clockwise to move the halves closer together, forcing the belt to ride higher. To decrease speed, turn the flange counter-clockwise. Always re-tighten the setscrew on the flat of the threads or the keyway to prevent damage.
What belt sizes will work with the 1VP44 sheave?
This sheave is compatible with A and B belts (4L and 5L), as well as 3L sections. It is most commonly used with A or B belts in fractional horsepower applications up to 25 HP depending on the specific drive configuration.
When should I replace the sheave rather than adjusting it?
If you see "cupping" or significant wear on the interior faces of the flanges, the belt will slip or "bottom out," leading to lost CFM and belt failure. At that point, a replacement Trane sheave is necessary to restore efficiency.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
