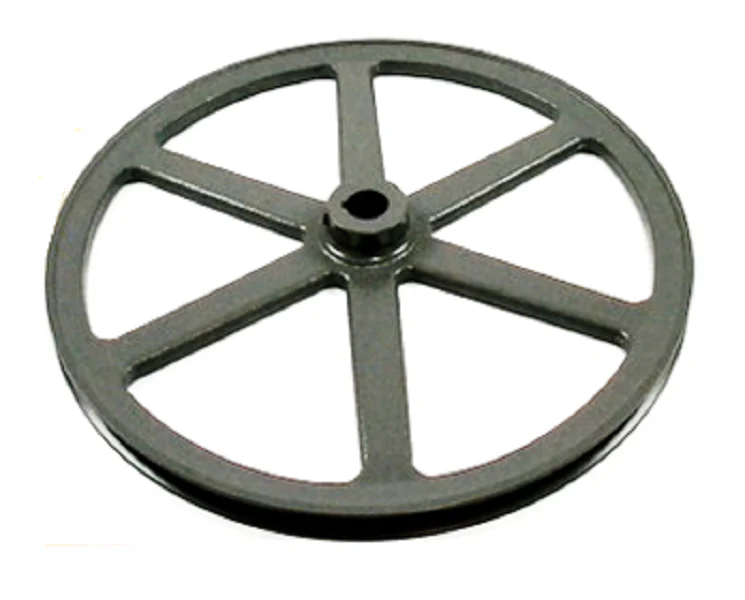

Trane SHE5366 Sheave
As a field technician, you know that drive train precision is non-negotiable for commercial HVAC performance. The Trane SHE5366 Sheave is a heavy-duty, single-groove v-belt pulley designed specifically for large-scale air handling units and packaged rooftop systems. Engineered from powder-coated cast iron, this BK190 sheave features a precise 1 13/16 inch bore with a standard 1/4" x 1/8" keyway to ensure slip-free torque transmission. With an 18.75-inch outside diameter and a statically balanced design, it minimizes vibration and mechanical stress on motor bearings. Whether you are performing a seasonal belt adjustment or a full blower assembly overhaul, this OEM Trane replacement part maintains the exact pitch diameter—18.0 inches for A/4L belts and 18.4 inches for B/5L belts—required to meet factory airflow specifications. This component is cross-referenced as Trane SHE05366 and serves as a direct replacement for legacy part numbers TRNSHE01007 and TRNSHE5366, ensuring a perfect drop-in fit for high-tonnage YHD and THD series units.
Key Benefits:- Optimized Power Transfer: The 1-groove design is compatible with both 4L/A and 5L/B section V-belts, providing versatile drive-train integration.
- Industrial Durability: Constructed from high-grade cast iron with a corrosion-resistant powder coating to withstand harsh rooftop environments.
- Vibration Reduction: Each unit is statically balanced to prevent shaft oscillation, extending the service life of both the motor and the blower wheel.
- Precision Bore Sizing: Features a 1.19" bore diameter for a secure, seated fit on standard 1-3/16" drive shafts.
- What belt types are compatible with this sheave? This sheave is designed to work with A, 4L, B, and 5L section V-belts, offering flexibility for different belt-driven HVAC applications.
- Does this sheave include the set screw? Most fixed-bore sheaves like the SHE5366 include a standard set screw over the keyway for secure shaft locking.
- What units does the Trane SHE5366 fit? It is a common component in Trane Voyager and Precedent rooftop units, specifically within the 17.5 to 25-ton range.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $231.96
-65%$231.96
$81.19Trane SHE5366 Sheave
As a field technician, you know that drive train precision is non-negotiable for commercial HVAC performance. The Trane SHE5366 Sheave is a heavy-duty, single-groove v-belt pulley designed specifically for large-scale air handling units and packaged rooftop systems. Engineered from powder-coated cast iron, this BK190 sheave features a precise 1 13/16 inch bore with a standard 1/4" x 1/8" keyway to ensure slip-free torque transmission. With an 18.75-inch outside diameter and a statically balanced design, it minimizes vibration and mechanical stress on motor bearings. Whether you are performing a seasonal belt adjustment or a full blower assembly overhaul, this OEM Trane replacement part maintains the exact pitch diameter—18.0 inches for A/4L belts and 18.4 inches for B/5L belts—required to meet factory airflow specifications. This component is cross-referenced as Trane SHE05366 and serves as a direct replacement for legacy part numbers TRNSHE01007 and TRNSHE5366, ensuring a perfect drop-in fit for high-tonnage YHD and THD series units.
Key Benefits:- Optimized Power Transfer: The 1-groove design is compatible with both 4L/A and 5L/B section V-belts, providing versatile drive-train integration.
- Industrial Durability: Constructed from high-grade cast iron with a corrosion-resistant powder coating to withstand harsh rooftop environments.
- Vibration Reduction: Each unit is statically balanced to prevent shaft oscillation, extending the service life of both the motor and the blower wheel.
- Precision Bore Sizing: Features a 1.19" bore diameter for a secure, seated fit on standard 1-3/16" drive shafts.
- What belt types are compatible with this sheave? This sheave is designed to work with A, 4L, B, and 5L section V-belts, offering flexibility for different belt-driven HVAC applications.
- Does this sheave include the set screw? Most fixed-bore sheaves like the SHE5366 include a standard set screw over the keyway for secure shaft locking.
- What units does the Trane SHE5366 fit? It is a common component in Trane Voyager and Precedent rooftop units, specifically within the 17.5 to 25-ton range.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
