Trane RLY3210 Relay

Trane RLY3210 Relay

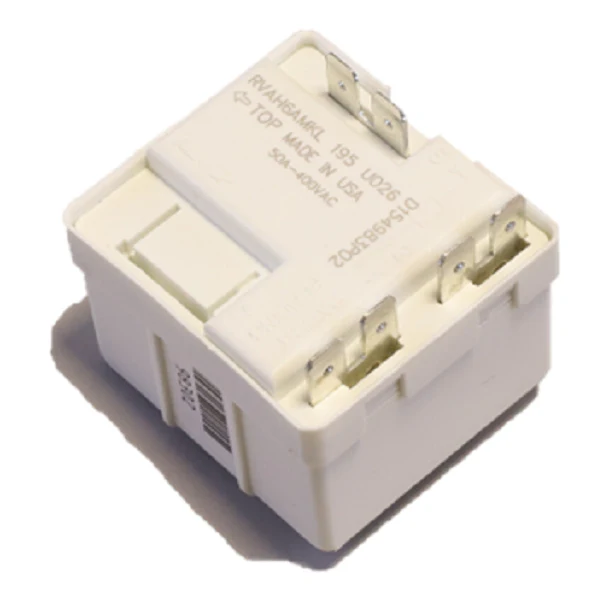

The Trane RLY3210 is a heavy-duty OEM compressor start relay engineered for single-phase residential and commercial condensing units. This 50A coil relay serves as a critical replacement component for managing high-torque compressor startups in Trane and American Standard HVAC systems. By utilizing a 50-ampere rated coil, this component effectively engages the start capacitor to provide the necessary jump for 1.5 to 5-ton compressors, then automatically disengages once the motor reaches 75-80% of its rated speed. The RLY03210 start relay is designed with specific 239V pick-up and 135V drop-out voltage ratings to prevent motor burnout and winding overheating during low-voltage conditions. As a direct HVAC start relay cross-reference for legacy part numbers like RLY1869 and RLY-01869, this SPST (Single Pole Single Throw) device ensures mechanical compatibility and electrical precision in 4A7B, 2A6B, and 2A7A series outdoor units. Key Benefits
  • OEM Precision: Genuine Trane replacement part ensures exact electrical specifications for 50A inductive loads.
  • Enhanced Compressor Protection: High-amperage coil handles rapid cycling and high-current inrush without contact welding.
  • Broad Compatibility: Universal replacement for RLY1869 and RLY01869 across multiple generations of Trane and American Standard systems.
  • Stable Performance: Fixed voltage pick-up and drop-out points provide consistent operation in fluctuating power environments.
Common Questions

Can I use this 50A relay to replace a 35A start relay?
Yes, moving to a 50A rated coil provides a more robust contact surface for handling compressor startup amperage, though you should always verify the original voltage tap and mounting footprint before installation.

What are the symptoms of a failing start relay?
Technicians typically look for a "buzzing" sound at the compressor hub, hard starts where the compressor hums but fails to turn over, or thermal overload trips caused by the capacitor remaining in the circuit too long.

Is this relay compatible with non-Trane systems?
While designed as a Trane OEM component, its 50A coil current and SPST configuration allow it to function in many systems requiring a 240V potential relay, provided the electrical ratings match the manufacturer’s requirements.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

$15.82

Original: $45.21

-65%
Trane RLY3210 Relay—

$45.21

$15.82

Trane RLY3210 Relay

The Trane RLY3210 is a heavy-duty OEM compressor start relay engineered for single-phase residential and commercial condensing units. This 50A coil relay serves as a critical replacement component for managing high-torque compressor startups in Trane and American Standard HVAC systems. By utilizing a 50-ampere rated coil, this component effectively engages the start capacitor to provide the necessary jump for 1.5 to 5-ton compressors, then automatically disengages once the motor reaches 75-80% of its rated speed. The RLY03210 start relay is designed with specific 239V pick-up and 135V drop-out voltage ratings to prevent motor burnout and winding overheating during low-voltage conditions. As a direct HVAC start relay cross-reference for legacy part numbers like RLY1869 and RLY-01869, this SPST (Single Pole Single Throw) device ensures mechanical compatibility and electrical precision in 4A7B, 2A6B, and 2A7A series outdoor units. Key Benefits
  • OEM Precision: Genuine Trane replacement part ensures exact electrical specifications for 50A inductive loads.
  • Enhanced Compressor Protection: High-amperage coil handles rapid cycling and high-current inrush without contact welding.
  • Broad Compatibility: Universal replacement for RLY1869 and RLY01869 across multiple generations of Trane and American Standard systems.
  • Stable Performance: Fixed voltage pick-up and drop-out points provide consistent operation in fluctuating power environments.
Common Questions

Can I use this 50A relay to replace a 35A start relay?
Yes, moving to a 50A rated coil provides a more robust contact surface for handling compressor startup amperage, though you should always verify the original voltage tap and mounting footprint before installation.

What are the symptoms of a failing start relay?
Technicians typically look for a "buzzing" sound at the compressor hub, hard starts where the compressor hums but fails to turn over, or thermal overload trips caused by the capacitor remaining in the circuit too long.

Is this relay compatible with non-Trane systems?
While designed as a Trane OEM component, its 50A coil current and SPST configuration allow it to function in many systems requiring a 240V potential relay, provided the electrical ratings match the manufacturer’s requirements.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
