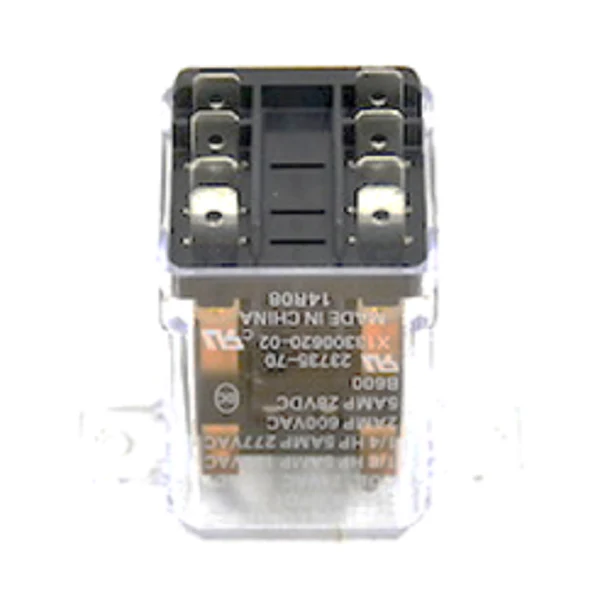

Trane RLY3065 Relay
The Trane RLY3065 Relay is a heavy-duty, industrial-grade DPDT relay specifically engineered for reliable switching in commercial and residential HVACR control circuits. Designed with a 24V coil and a 5 amp contact rating, this double-pole, double-throw relay provides the versatile logic required for fan sequencing, damper control, and interlocking auxiliary equipment. Built to withstand high-cycle operations in demanding environments, the RLY3065 features silver-plated copper alloy contacts to ensure low contact resistance and prevent premature pitting or welding under moderate inductive loads.
For contractors performing field service, this relay facilitates a drop-in replacement for standard 24VAC control relays, utilizing a compact housing that fits easily into crowded control cabinets or air handler panels. The 240-ohm coil resistance ensures efficient power consumption while providing the magnetic force necessary for positive mechanical snap-action switching. Whether you are troubleshooting air handler blower delays or upgrading a chiller interface circuit, the Trane RLY3065 delivers the consistent performance expected from OEM Trane electrical components.
Key Benefits for Technicians:- DPDT Contact Configuration: Offers two independent sets of contacts (Form C) for complex switching logic and simultaneous control of multiple circuits.
- Silver-Plated Contacts: Maximizes electrical conductivity and increases component longevity by resisting oxidation in high-humidity HVAC environments.
- Universal Mounting: Designed for standard panel or DIN rail installation setups common in industrial control enclosures.
- 24V Low-Voltage Compatibility: Seamlessly integrates with Trane thermostats and standard 24VAC HVAC control transformers.
What is the maximum amperage for the Trane RLY3065?
The relay is rated for a 5 amp load at 120/277VAC, making it ideal for pilot duty and small motor applications rather than high-amperage compressor loads.
Can this relay replace a single-pole relay?
Yes, the DPDT configuration of the Trane RLY3065 can be utilized to replace SPDT or SPST relays by using only the necessary poles, providing a versatile option for your service van.
What causes typical relay failure in these units?
Most failures result from contact arcing due to loose wiring or voltage surges. Always verify consistent 24V supply to the coil to prevent erratic switching and heat buildup.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $85.70
-65%$85.70
$29.99Trane RLY3065 Relay
