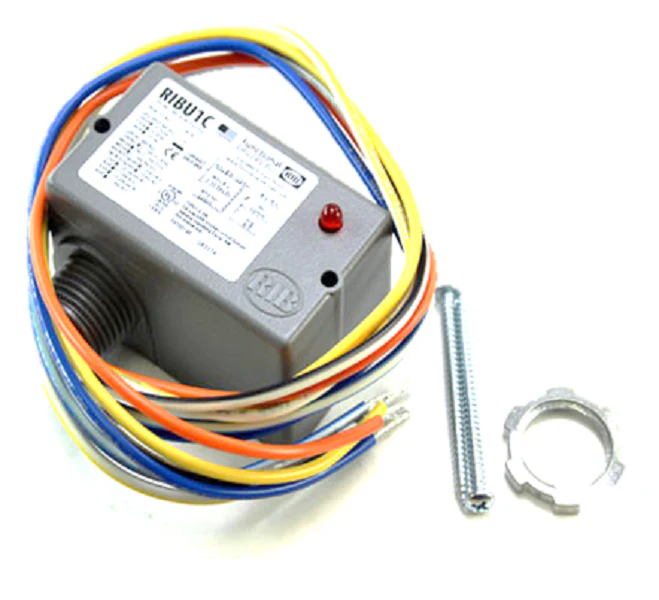

Trane RLY2547 Relay
The Trane RLY2547 is a heavy-duty 10A SPDT Enclosed Relay engineered for reliable pilot duty and power switching applications within HVACR control circuits. Designed as a direct OEM replacement relay, this unit features a Single Pole Double Throw configuration, allowing for versatile normally open or normally closed logic. It operates with a 24VAC coil, making it compatible with standard 24V control transformers found in Trane and American Standard air handlers and furnaces. The enclosed relay housing protects internal contacts from dust and oxidation, ensuring consistent low-resistance connections over high cycle counts. For field technicians, this HVAC power relay provides a clean installation with established lead wire color coding. Whether you are troubleshooting a fan motor relay failure or integrating auxiliary components into a sequence of operation, the RLY2547 ensures circuit integrity and precise load management for terminal equipment and secondary control systems.
- Enhanced Durability: The enclosed contact design prevents environmental contamination, reducing the risk of pitting or carbon buildup during high-frequency switching.
- Direct OEM Compatibility: Specifically designed for Trane HVAC systems, ensuring the electrical ratings and footprint align with factory specifications.
- Versatile SPDT Switching: Offers both normally open (NO) and normally closed (NC) contacts to handle diverse wiring requirements in complex control loops.
- High Load Capacity: Rated for up to 10 Amps, providing a robust buffer for pilot duty and small fractional horsepower motor loads.
Common Questions
Can the RLY2547 be used with 120V or 240V control circuits?
No, this specific model is designed with a 24V coil voltage requirement. Applying higher voltage to the coil will result in immediate component failure.
What is the primary function of an enclosed SPDT relay in an air handler?
It is typically used to interface low-voltage thermostats with higher-voltage components, such as starting a fan motor or energizing an auxiliary heater bank.
Is this relay suitable for outdoor condensing units?
While the contacts are enclosed, the relay should be mounted within a NEMA-rated electrical enclosure or the unit's control cabinet to protect it from direct moisture and weather exposure.
