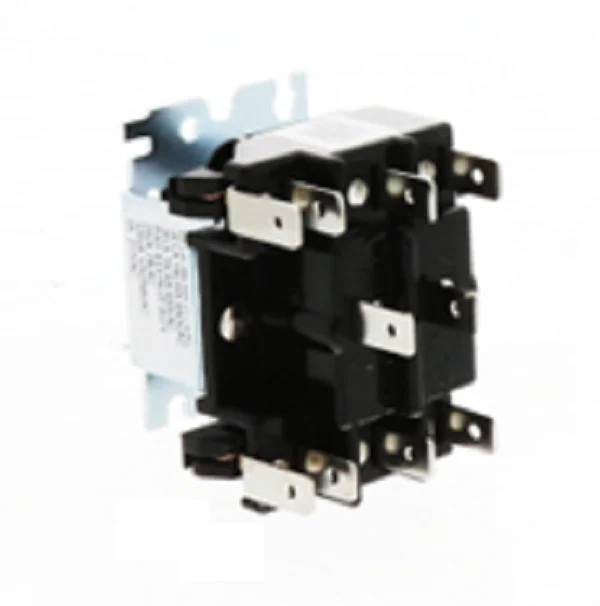

Trane RLY2463 Relay
The Trane RLY2463 is a high-reliability 24V 3A DPDT Gen. Purpose Relay engineered for heavy-duty switching in commercial and residential HVAC control circuits. As a genuine OEM component, this double pole double throw relay provides the versatility to manage two independent circuits simultaneously, making it an essential replacement for handling blower motor speeds, damper actuators, and auxiliary heat sequencing. With a robust 24VAC coil and contacts rated for up to 600VAC switching voltage (3 FLA / 15 LRA), the RLY02463 ensures stable performance under high-thermal loads typical of air handlers and furnaces. The silver alloy contact material minimizes resistance and prevents pitting, while the 1/4-inch quick-connect terminals streamline field replacement. Meeting UL and ARI 780 standards, this compact HVAC induction relay fits standard mounting footprints, ensuring seamless integration into existing control panels where space and precision are critical.
Key Benefits for Technicians:- Multi-Circuit Control: The DPDT configuration allows for simultaneous switching of independent line-voltage and low-voltage loads.
- Universal HVAC Compatibility: Designed as a direct replacement for Trane RLY2463 and RLY02463, commonly found in 2TEC and 4TEC air handlers.
- High Voltage Tolerance: Rated for up to 600V switching, providing a significant safety margin for 208/230V and 460V equipment.
- Durable Contact Points: Features silver alloy contacts to maintain low contact resistance and operational longevity in high-cycle applications.
Can the RLY2463 replace a SPDT relay in the field?
Yes, as long as the 24V coil voltage and 3A contact rating match. You would simply use one set of poles and leave the second set of DPDT contacts unused.
What are the physical dimensions for mounting clearance?
The footprint is approximately 2.0" x 1.8" x 2.37", allowing it to fit into standard control box arrangements without interfering with adjacent transformers or contactors.
Does this relay support 50/60 Hz systems?
Yes, the coil is rated for 50/60 Hz frequency, ensuring stable electromagnetic pull-in across different power grid standards.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
