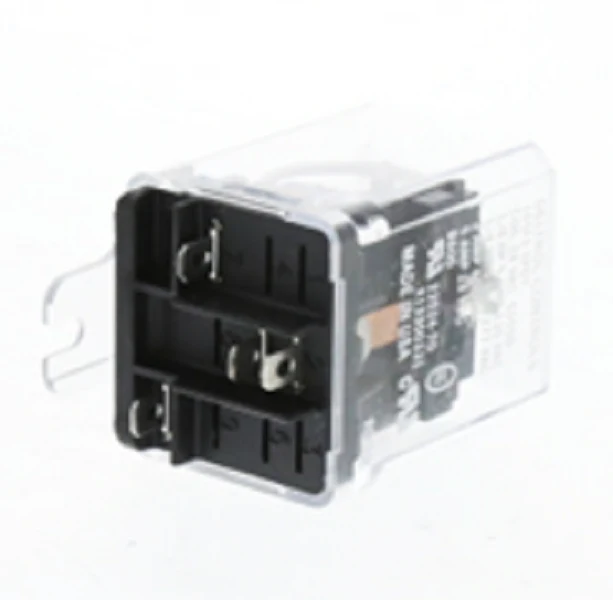

Trane RLY1890 Relay
When you're out in the field and dealing with a faulty 24V SPDT control relay, you need a component that integrates seamlessly into existing low-voltage circuits. The Trane RLY1890 is a high-performance HVAC relay designed to handle signal switching for air handlers, condensing units, and integrated control boards. As an OEM Trane replacement part, this Single Pole Double Throw (SPDT) relay provides both normally open (NO) and normally closed (NC) contacts, offering the versatility required for interlocking circuits or fan motor speed management. It is a rugged 24VAC relay capable of withstanding the electrical noise and rapid cycling typical of modern residential and commercial climate systems.
For technicians diagnostic workflow, the Trane RLY1890 relay features a standard mounting configuration that matches original factory specifications, reducing time spent on-site during board-level repairs or contactor swap-outs. Its 24-volt coil is optimized for low-current draw, ensuring compatibility with sensitive solid-state thermostats and microprocessor-based controls. Whether you are addressing an HVAC contactor issue or replacing a burnt-out fan relay, this component ensures consistent electrical continuity and mechanical reliability across thousands of cycles.
Key Benefits for the Contractor:- Direct OEM Compatibility: Specifically engineered to serve as a reliable Trane replacement part for precise fitment in OEM control cabinets.
- SPDT Configuration: The Single Pole Double Throw design allows for flexible wiring, supporting both NO and NC logic in complex 24V control circuits.
- Durable Construction: Built to endure the high-vibration environment of an air handler or condenser unit without contact chatter.
- Reduced Service Callbacks: High-grade silver alloy contacts prevent pitting and sticking, maintaining low contact resistance over time.
- Can I use this relay for both heating and cooling signals? Yes, the Trane RLY1890 is designed to switch signals between different HVAC stages or modes using its SPDT architecture.
- What happens if my 24V coil isn't pulling in? First, verify you have at least 21VAC at the coil terminals. If voltage is present but there is no audible "click," the internal coil may be open and the unit requires replacement.
- Is the RLY1890 compatible with non-Trane systems? While it is an OEM Trane part, it can function as a universal 24V SPDT control relay in any system meeting the same voltage and amperage ratings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
