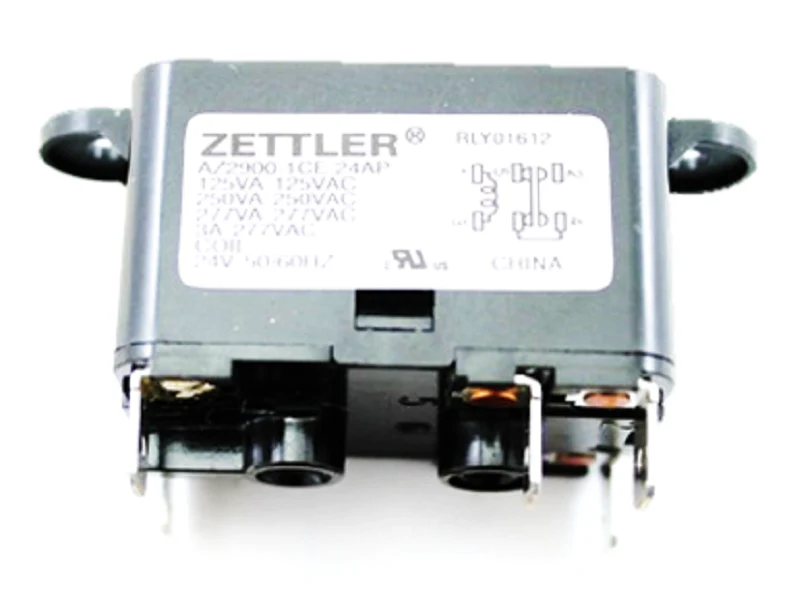

Trane RLY1612 Relay
The Trane RLY1612 Relay is an indispensable 24V SPDT control relay designed for reliable switching in HVAC systems. This replacement relay features a Single Pole Double Throw configuration, allowing for flexible contact sets that can handle both normally open and normally closed operations. Engineered specifically for Trane HVAC electrical components, the RLY1612 ensures seamless integration with furnace control boards and air handler circuits. It functions as a heavy-duty 24-volt pilot duty relay, capable of managing inductive loads without premature contact pitting. For technicians troubleshooting intermittent fan operation or compressor signaling issues, this low voltage control relay provides consistent mechanical switching performance. The compact design facilitates easy installation within existing control boxes, maintaining internal circuit integrity while providing high-amperage switching capacity for demanding residential and light commercial applications.
Key Benefits:
- Universal HVAC Compatibility: Designed for standard 24V control circuits, ensuring compatibility with Trane RLY01612 and equivalent OEM specifications.
- High-Conductivity Contacts: Utilizes silver-alloy contact points to minimize electrical resistance and reduce arcing under load.
- SPDT Versatility: Provides both NC and NO terminals, making it suitable for fan sequencers, blower motors, and heat pump reversing valve logic.
- Rugged Construction: Built with a durable enclosure that protects internal coils from dust and vibration common in mechanical rooms.
Common Questions:
What are the coil voltage requirements for this relay?
The RLY1612 operates on a standard 24V AC coil voltage, making it compatible with most 24V transformers in modern HVAC systems.
Can this replace a different brand SPDT relay?
Yes, as long as the terminal configuration and amp ratings match, this relay can replace generic 24V SPDT components in pilot duty circuits.
How do I wire this into a fan circuit?
Common wiring involves connecting the 24V signal to terminals 1 and 3, while using terminal 2 for common and terminals 4 or 5 depending on the required switching state.
